Low Side Cut-Out Switch

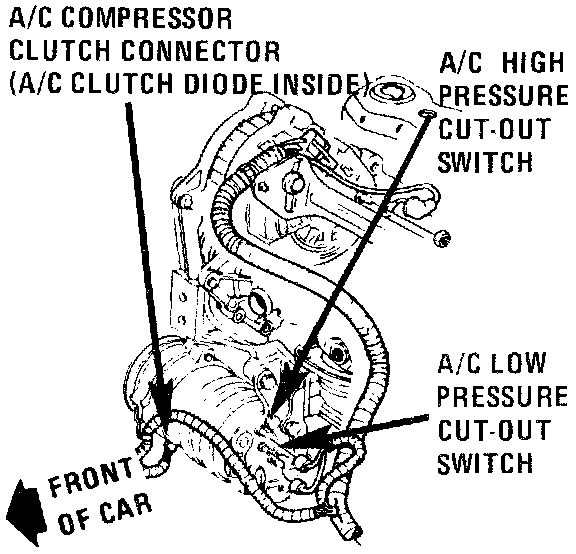

High And Low Pressure Cut-Out Switches:






The Low and High Pressure Cut-Out Switches are located at the lower RH front of engine compartment on the left end of the compressor.
