System Diagnosis - C3I Ignition

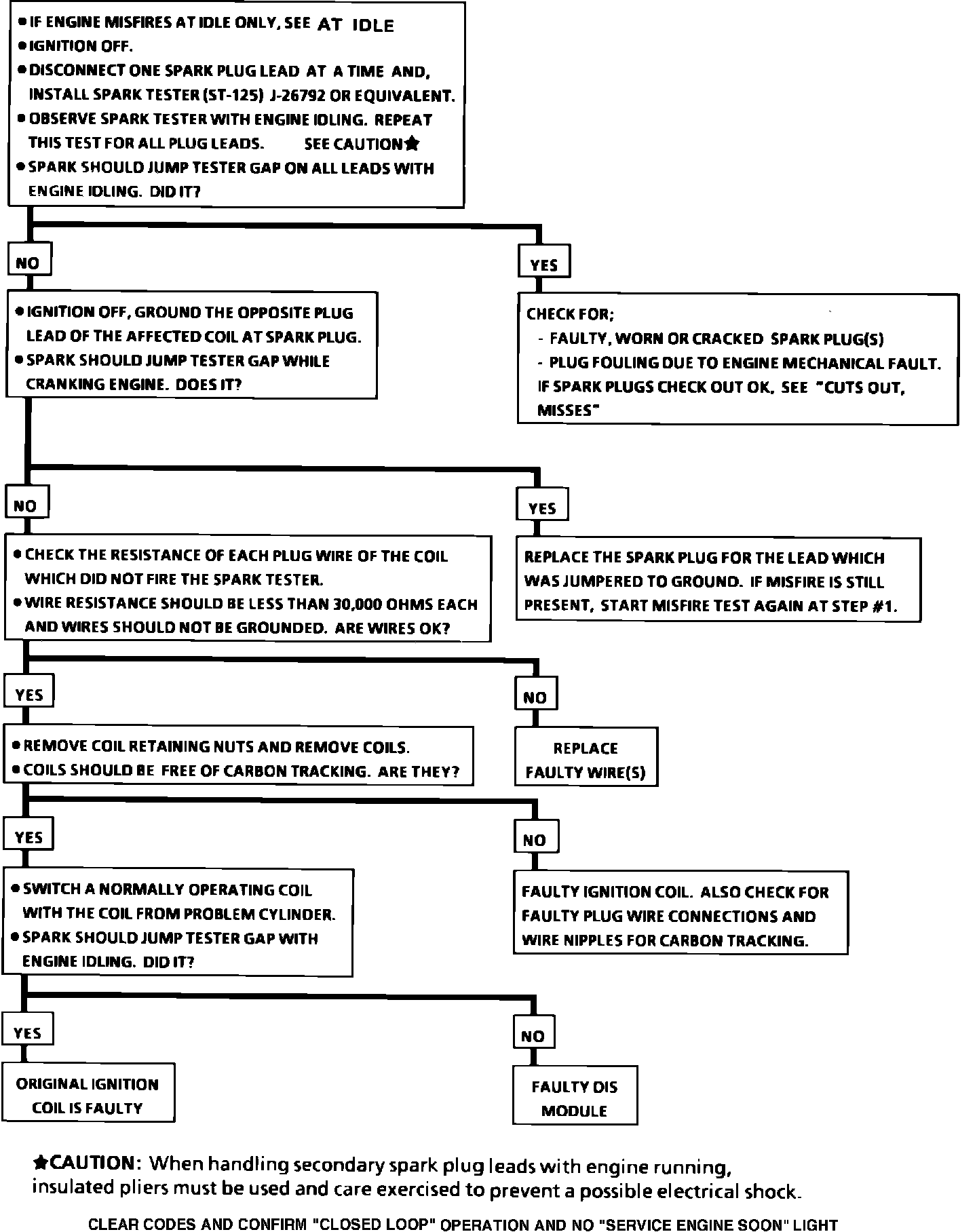

Fig. 7 DIS diagnosis chart (At Idle):

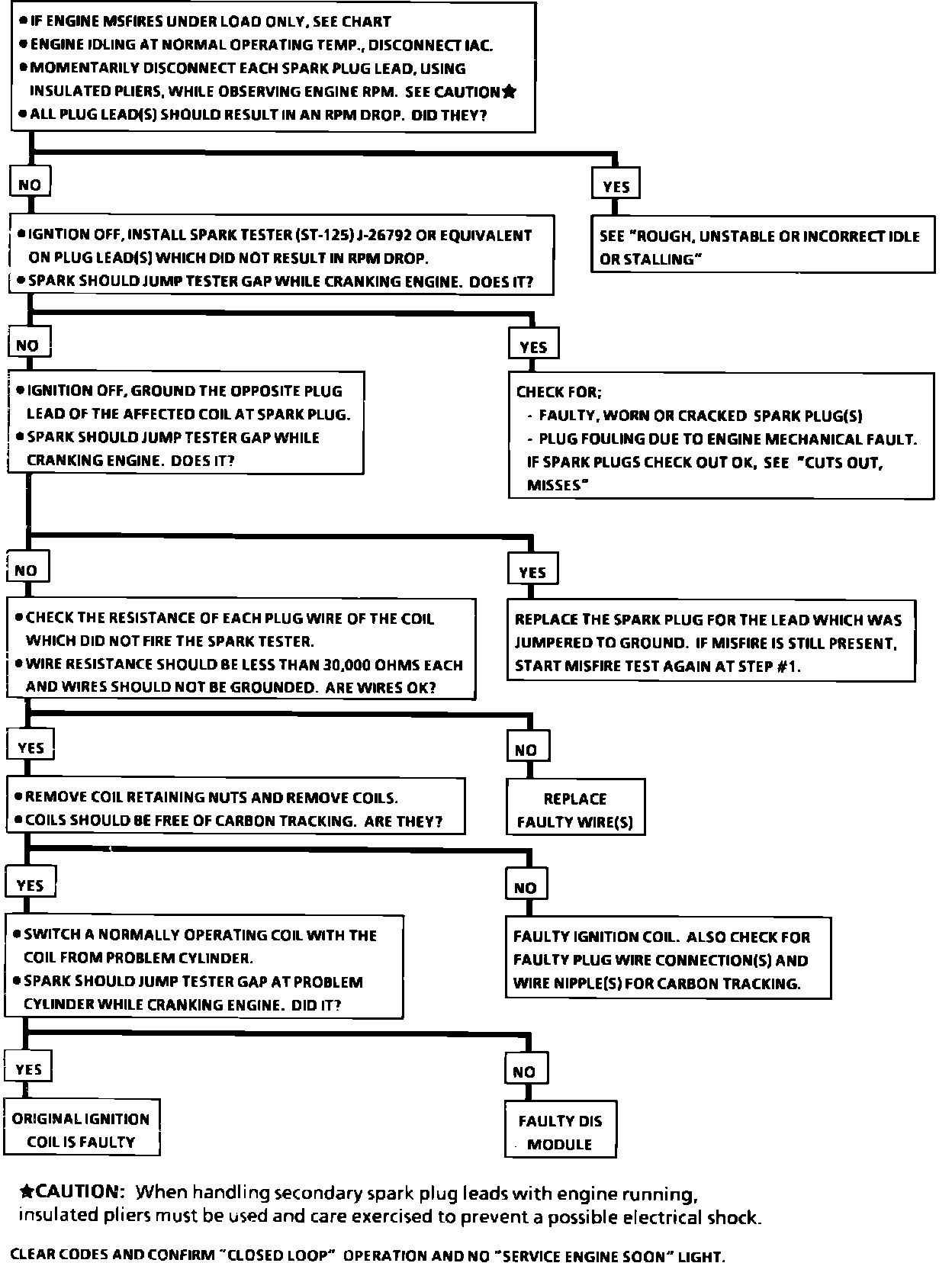

Fig. 8 DIS diagnosis chart (Under Load):
Refer to DIS
ignition system diagnosis charts,
Figs. 7 and 8 for diagnosis procedures.
