A/C - Neoprene O-Ring Usage Chart: Overview

88olds04
NUMBER: 88-I-14

CORP. REF. NO.: 711205

DATE: February 1988

SECTION: 1B
SUBJECT AIR CONDITIONING NEOPRENE O-RING CHART


MODELS/YEARS ALL 1985-88 MODELS

|��O:

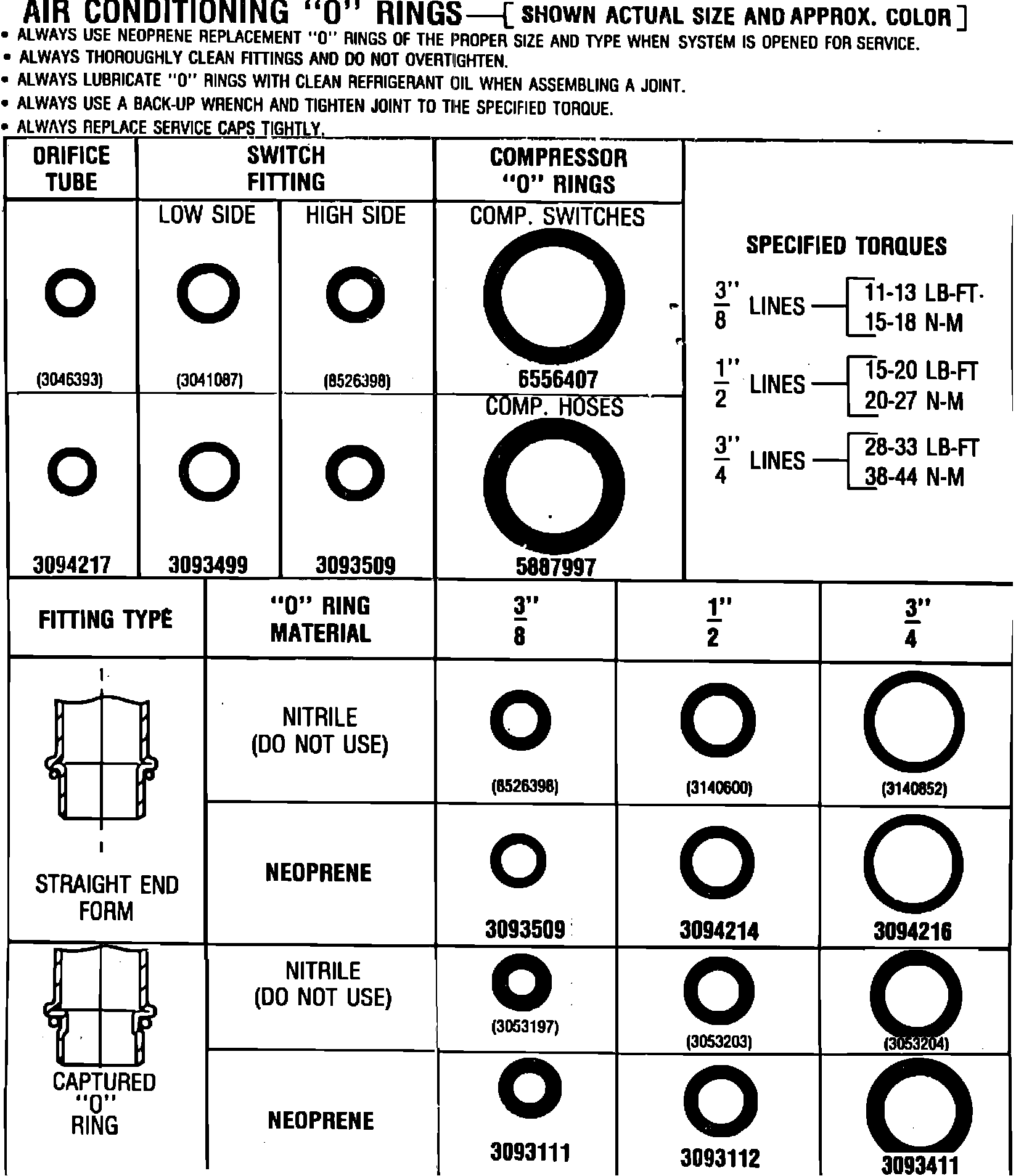

Attached is a laminated copy of the air conditioning Neoprene O-Ring Chart. This chart will assist dealer personnel in identifying the correct Neoprene Replacement O-Rings and provide some general air conditioning service information.

This chart should be made available to dealer technicians responsible for air conditioning service.
