Clutch: Description and Operation

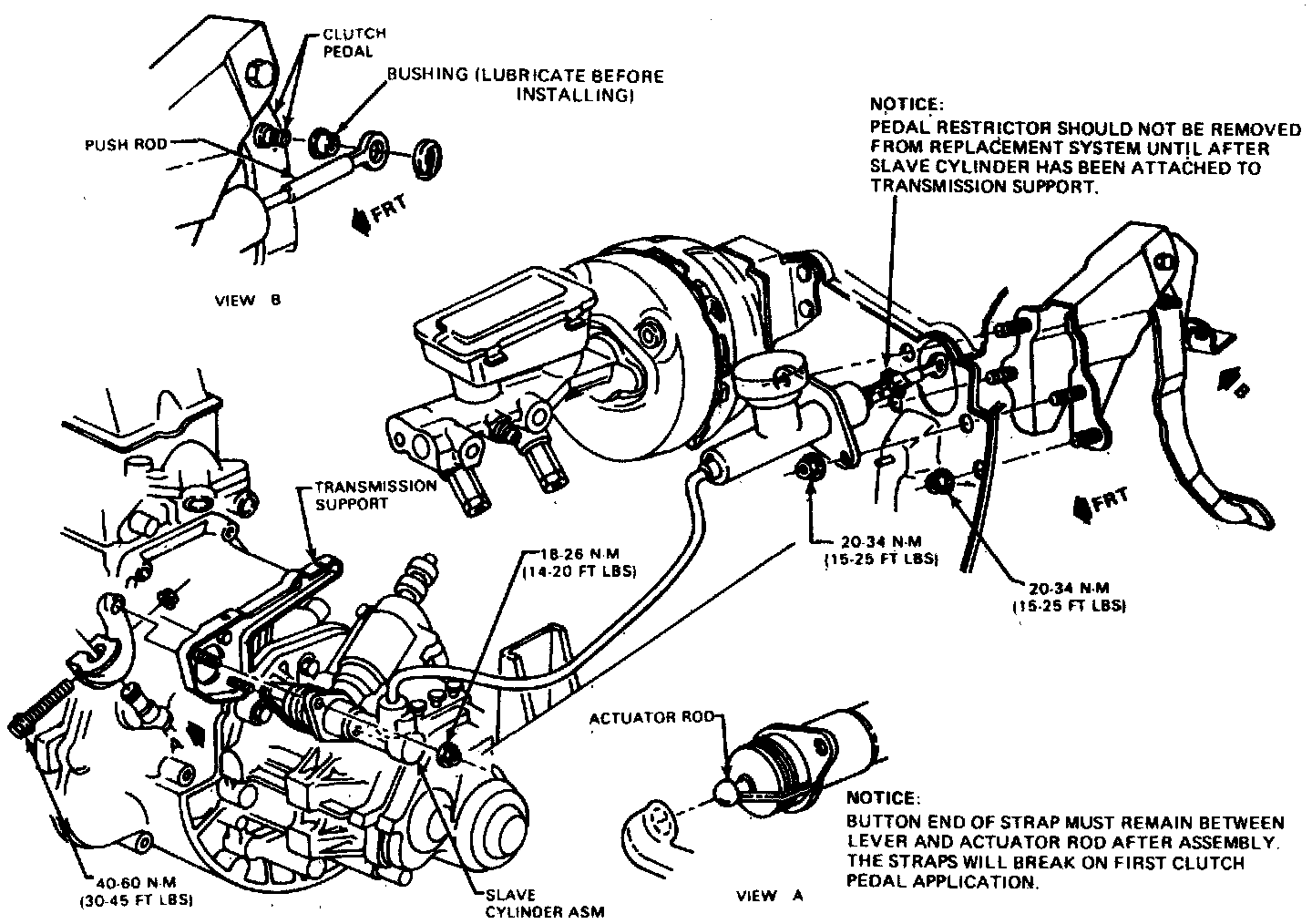

On these models, a hydraulic clutch system is used, see accompanying figure. The system consists of a dash mounted master cylinder with integral reservoir, a transmission mounted slave cylinder and high pressure tubing to connect the two components.
