Windshield Washer Pump: Service and Repair

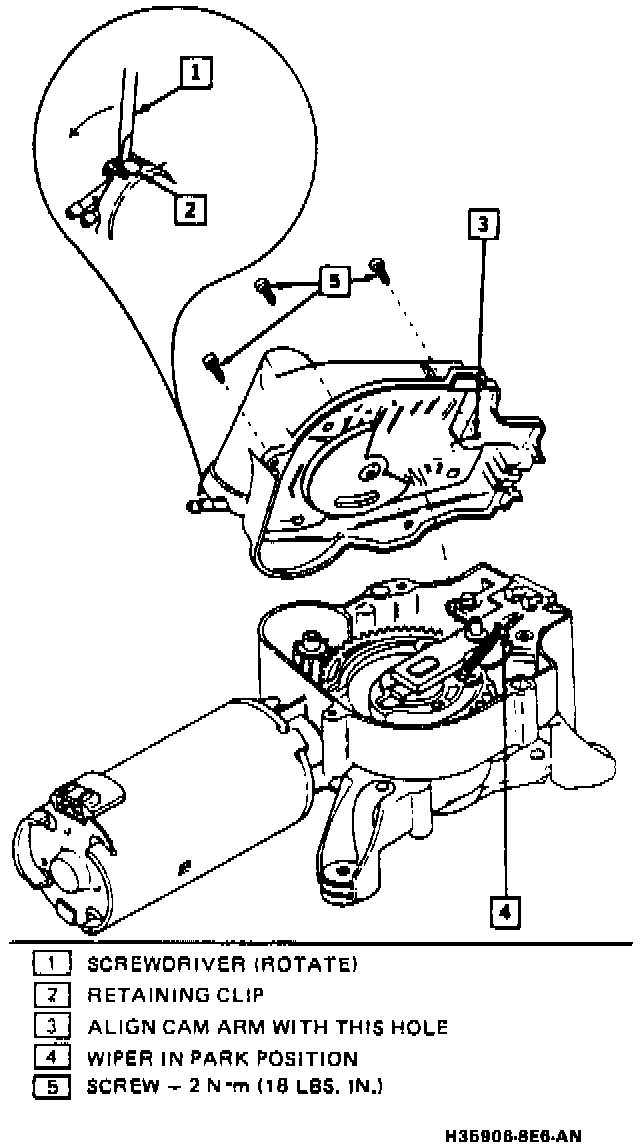

Pulse Wiper Motor (Cover Removed):
Remove or Disconnect 1.
Washer retaining clip
2.
Washer pump IMPORTANT ^
Pull pump straight out being careful not to break nozzles.
Install or Connect 1.
New
washer pump 2.
Washer retainer clip
IMPORTANT ^
Make sure new
washer pump is pushed all the way into the washer cover female terminals.
