System Service
The belt-driven vacuum pump is serviced as an assembly only. Refer to
Fig. when replacing the vacuum pump.

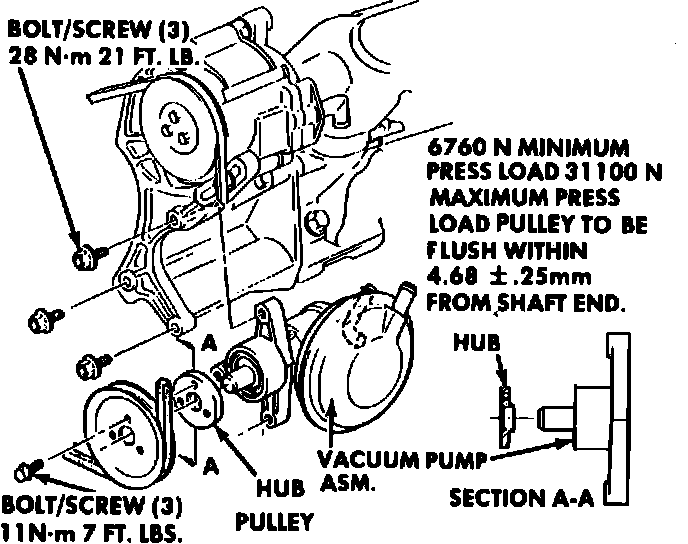

On models equipped with V6-181 engine, the vacuum pump pulley must be replaced whenever the vacuum pump is removed.Fig. 13 Vacuum pump replacement. V6-181 engine (typical):
Vacuum Pump Mounting
