Installation

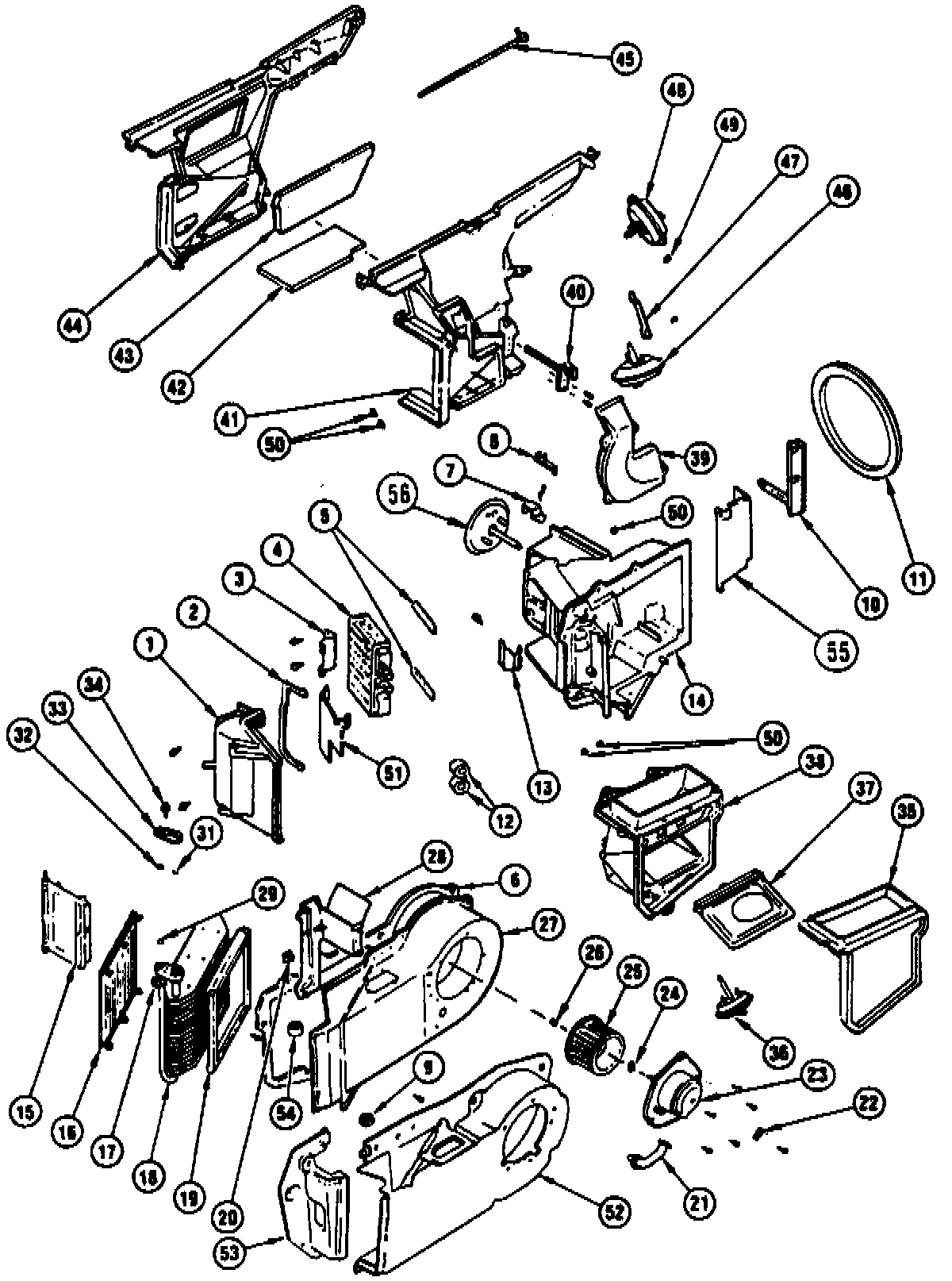

A/C Heater And Evaporator Part 1 Of 2:

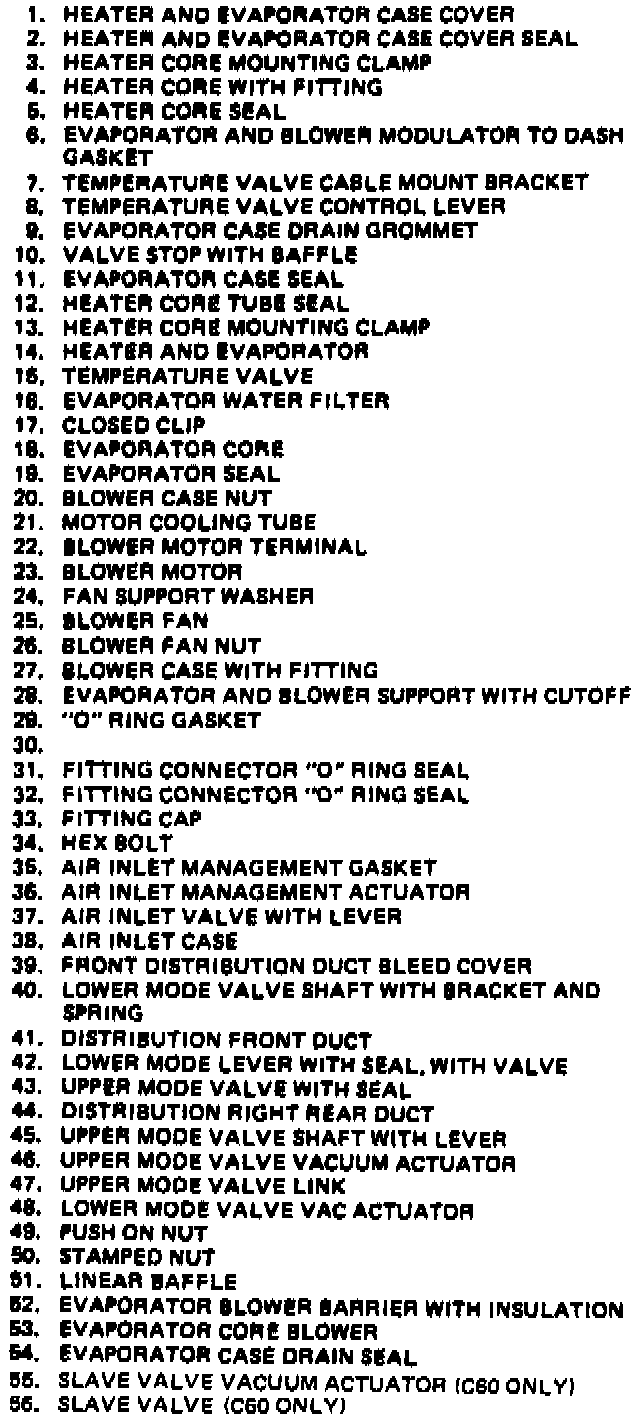

A/C Heater And Evaporator Part 2 Of 2:
INSTALL OR CONNECT 1.
Heater Core.
2.
Heater Core cover.
3.
Programmer.
4.
Programmer linkage and linkage cover.
5.
Wires and hoses to programmer.
6.
Lower I.P. trim plate.
7.
Center I.P. trim cover.
8.
Right sound insulator.
9.
Heater hoses.
10.
Splash Cover.
11.
Fill
cooling system.
12.
Negative battery cable.
