Engine Controls - Revised Chart A-3, No Start
89oldsmobile05SUBJECT SERVICE MANUAL UPDATE - SECTION 6E -
DRIVEABILITY AND EMISSIONS/REVISED CHART A-3 (1 OF 3)
MODELS/YEARS 1989 CUTLASS CALAIS 2.3L (VIN A, D)
NUMBER: 89-T-59
CORP.REF.NO: 916509
DATE: March 1989
SECTION: 6E

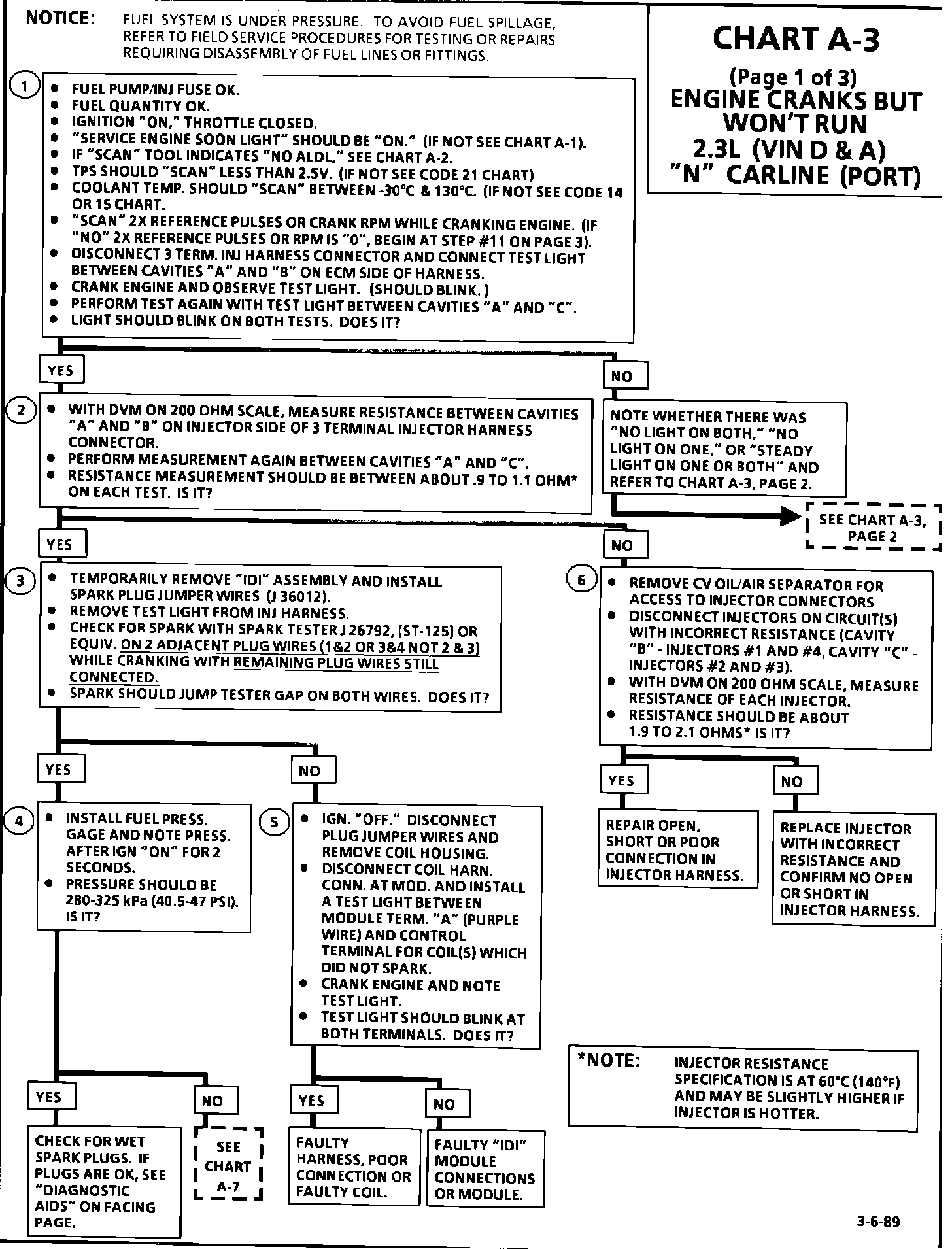

The A-3 Diagnostic Chart (Page 1 of 3) is revised to identify the correct beginning step to follow after no rpm or 2X Signal is received.
This Chart replaces the present Chart A-3 (Page 1 of 3) "Engine Cranks But Won't Run" found in Section 6E3 "Driveability and Emissions", page 6E3-A-17 of the 1989 Cutlass Calais Service Manual.
