ECM - Revised Wiring Diagram

NUMBER:
90-T-99

CORP.REF.NO:
016519

DATE:
May 1990

SECTION:
6E3


SUBJECT
SERVICE MANUAL UPDATE - SECTION 6E3-
DRIVEABILITY AND EMISSIONS - REVISED ECM
WIRING DIAGRAM (PG 2 OF 3)

MODELS/YEARS
1990 CUTLASS CIERA/CRUISER WITH 3300 (VIN N)

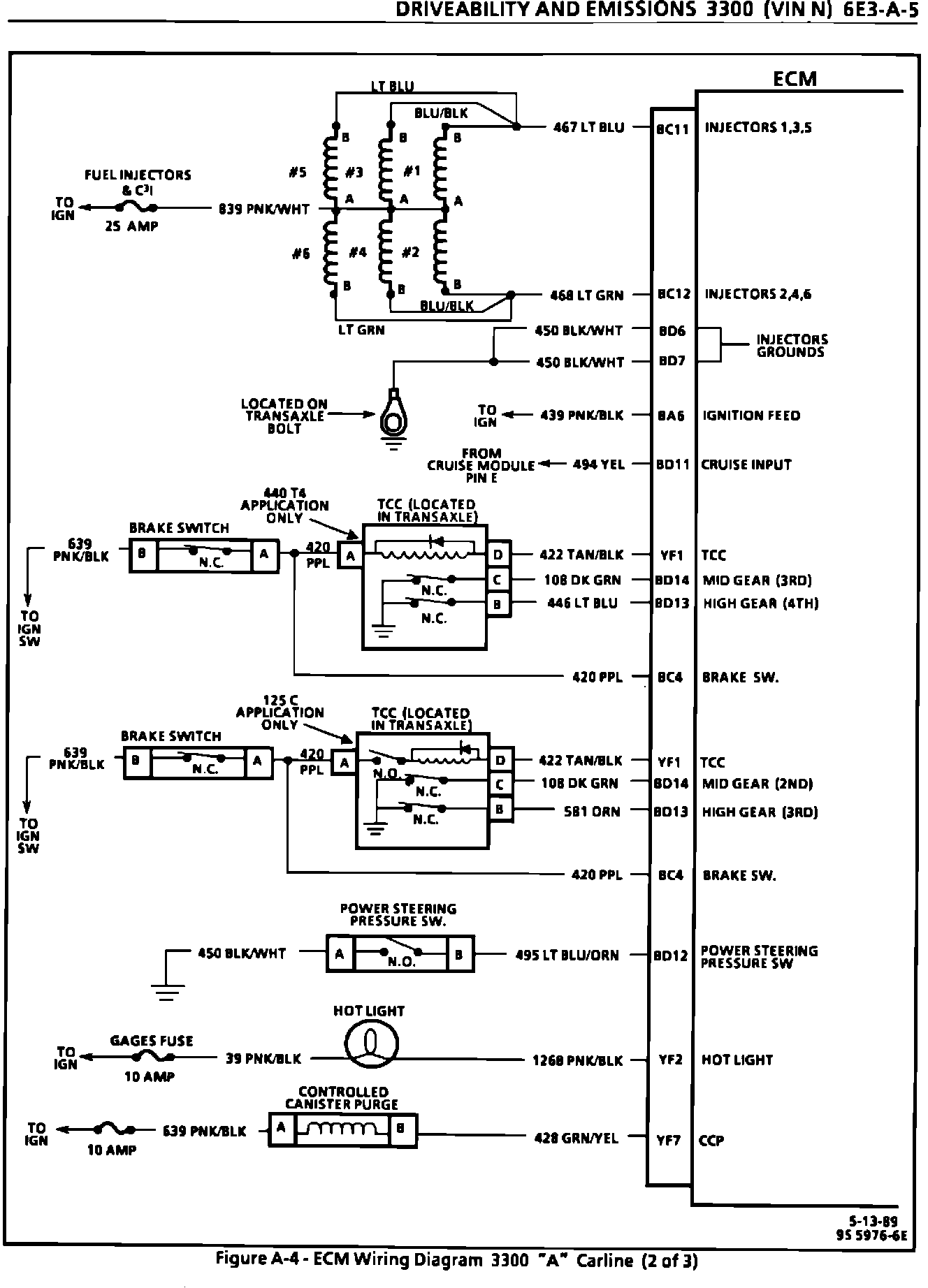

The illustration in this bulletin is to replace the ECM wiring diagram (page 2 of 3) on page 6E3- A-5 in Section 6E3, "Driveability And Emissions" of the 1990 Cutlass Ciera/Cruiser Service Manual.
