EGR Valve: Service and Repair

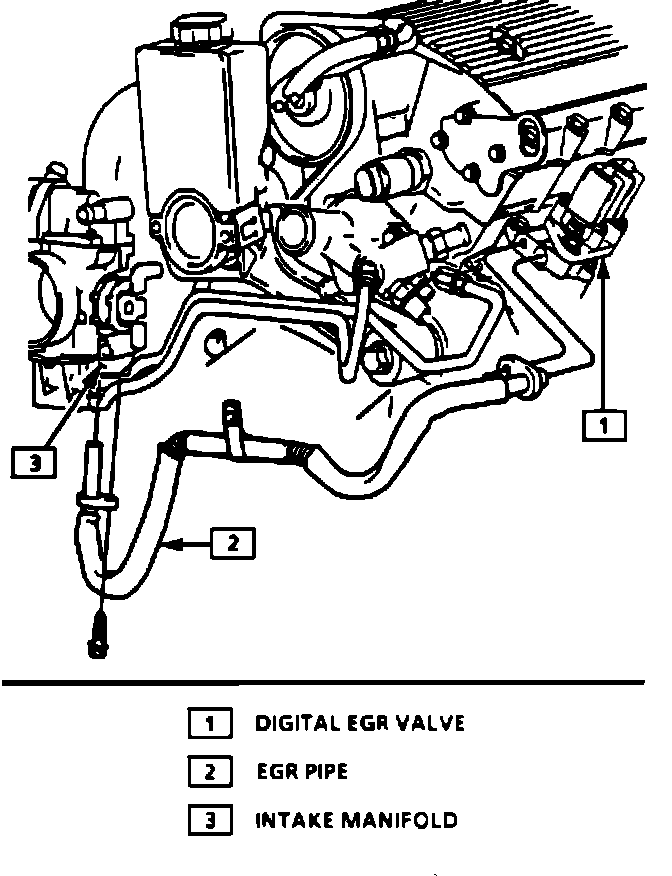

EGR Components:
Digital EGR Valve:
EGR AND ADAPTER REMOVAL: 1.
Remove
EGR electrical connector.
2.
Remove attaching nuts, valve, and gasket.
3.
Remove the EGR pipe to adapter attaching bolt.
4.
Remove the adapter attaching bolts, adapter, and seal.
INSTALLATION:^
Install in reverse order of removal.
