Programming Procedure

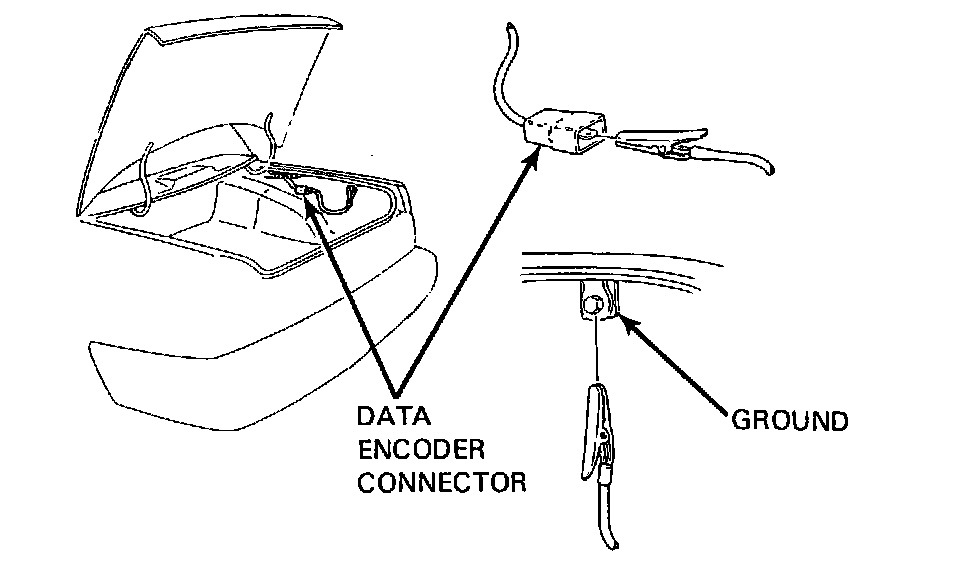

RH Side Of Trunk Luggage Compartment:






^ Do the following procedure whenever the Data Encoder Connector is grounded, the Keyless Entry Module is replaced, the portable transmitter is replaced or a second transmitter is added.

1. Jumper the Data Encoder connector to ground (all power door locks will lock and unlock).

2. Operate transmitter by pressing a single button once.

3. To program for a second portable transmitter, operate transmitter 2 within 5 seconds of step 2 by pressing a single button once.

4. Verify that the portable transmitter(s) operate door locks and luggage compartment release.
