With Manual A/C

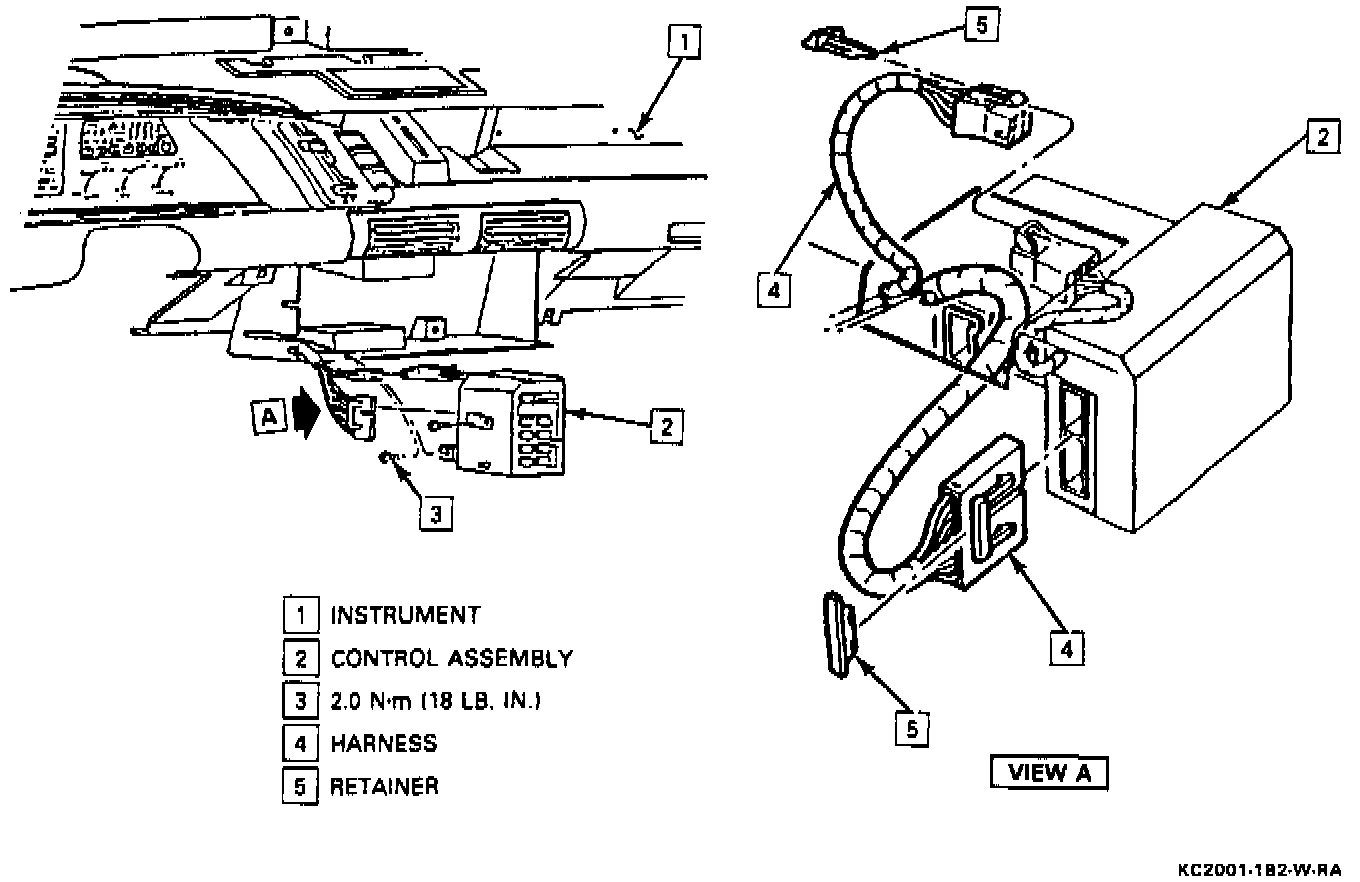

A/C Control Assembly:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Lower left instrument panel.
3. Control assembly trim panel.
4. Loosen screws on left side of control assembly.
5. Control assembly from dash.
6. Control assembly electrical connections.

INSTALL OR CONNECT
1. Control assembly electrical connections.
2. Control assembly to dash.
3. Left side control assembly mounting screws.
4. Control assembly trim panel.
5. Lower left instrument panel pad.
6. Negative battery cable.
