Engine Controls - Manual Update Revised Chart A-3 & A-5
Group Ref.: 6E - Engine Fuel & EmissionsBulletin No.: 316515A
Date: August, 1994
SERVICE MANUAL UPDATE
SUBJECT:
SECTION 6E3 - DRIVEABILITY AND EMISSIONS - (REVISED ECM WIRING DIAGRAM FIGURE AND CHARTS)
MODELS:
1992 BUICK SKYLARK
1992 OLDSMOBILE ACHIEVA
1992 PONTIAC GRAND AM
THIS BULLETIN CANCELS AND SUPERSEDES BULLETIN NO. 316515 TO CORRECT THE GROUP REFERENCE. PLEASE DISCARD BULLETIN NO. 316515.
This bulletin updates Diagnostic Charts. The updated charts represent engineering changes in the fuel pump relay system. Included are enhanced diagnostic charts. The charts are as follows:
ECM Wiring Diagram (1 of 3).

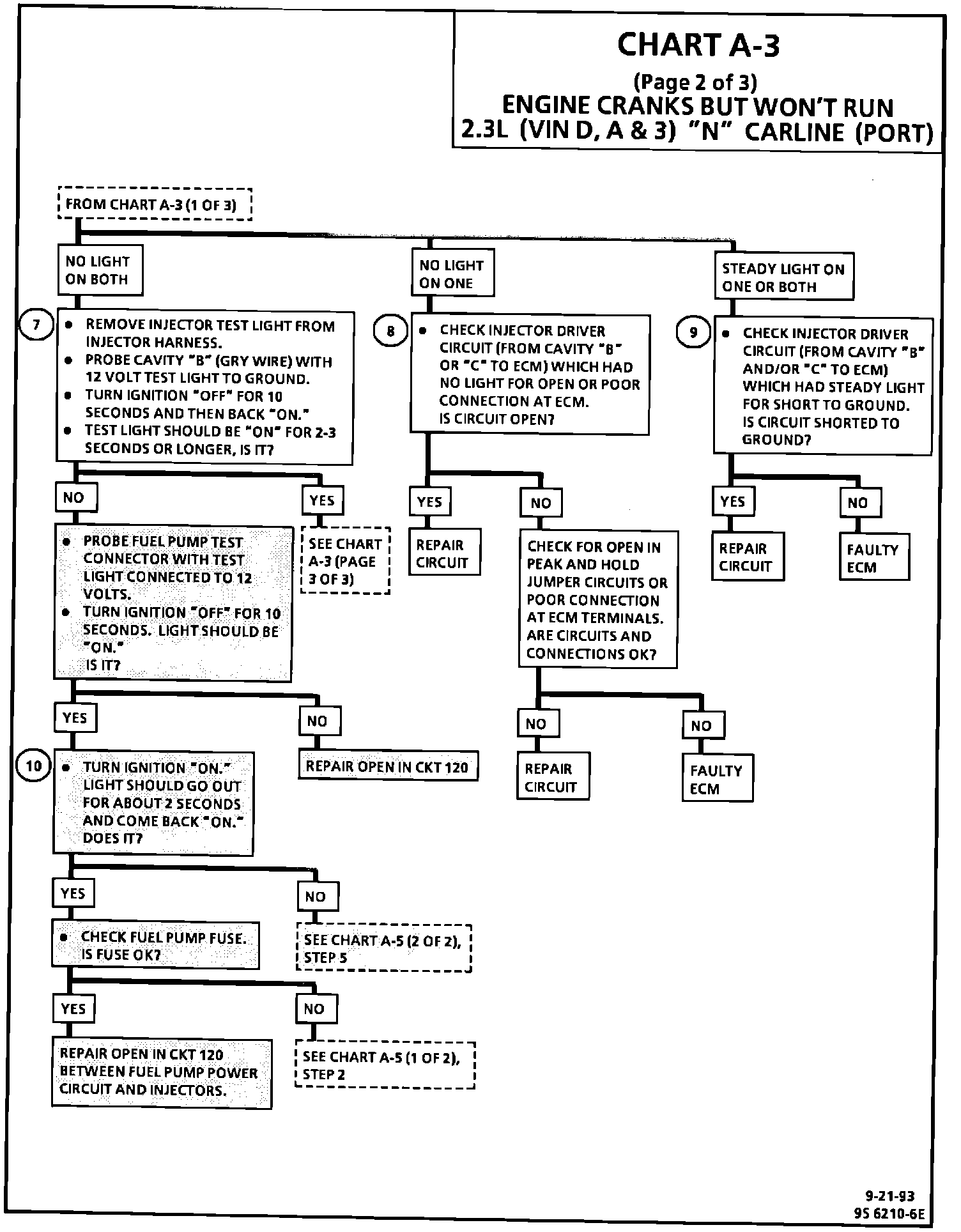

Chart A-3 - Engine Cranks But Will Not Run.

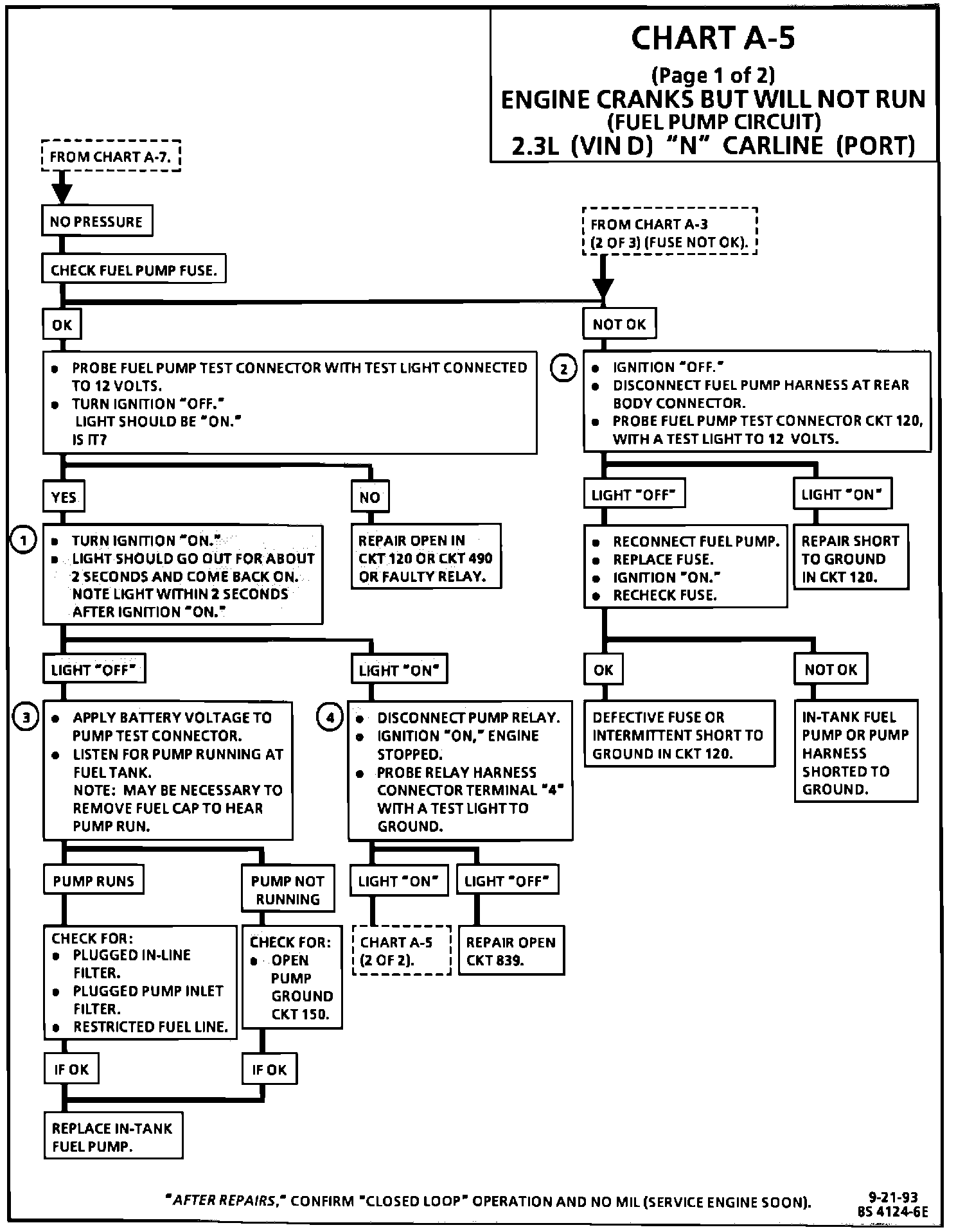

Chart A-5 - Engine Cranks But Will Not Run.
Chart A-5 - Engine Cranks But Will Not Run.

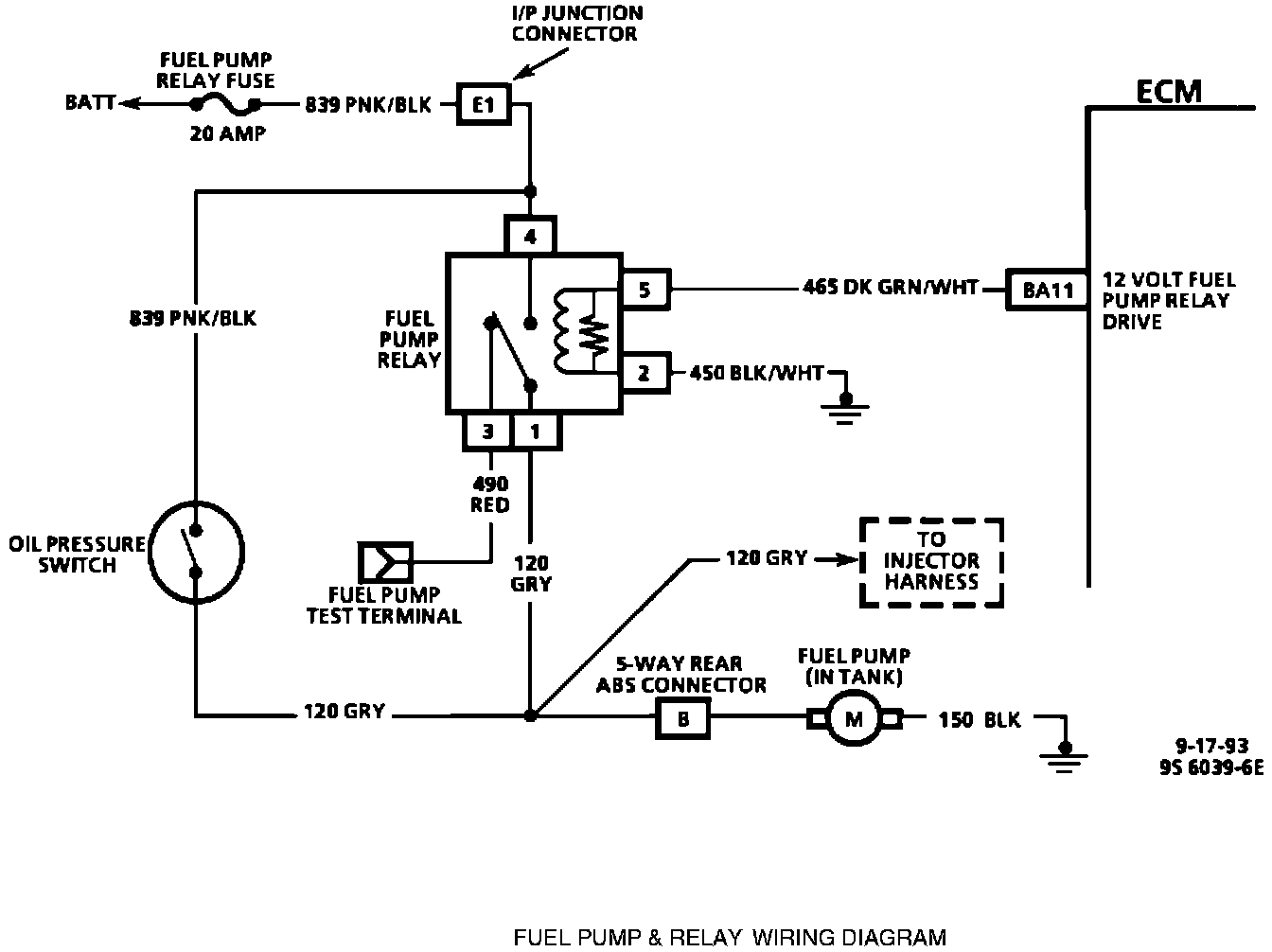

Chart A-5 - Fuel Pump and Relay Wiring Diagram
