Brake - Service Specifications Revised

NUMBER: 93-U-37

CORP.REF.NO: 335002, 335006

DATE: April 1993

SECTION: 5, 5B

SUBJECT:
REVISED BRAKE SERVICE SPECIFICATIONS

MODELS/YEARS:
ALL 1992-93 MODELS (EXC. BRAVADA) AND 1991 CUTLASS CALAIS

1992-93, All

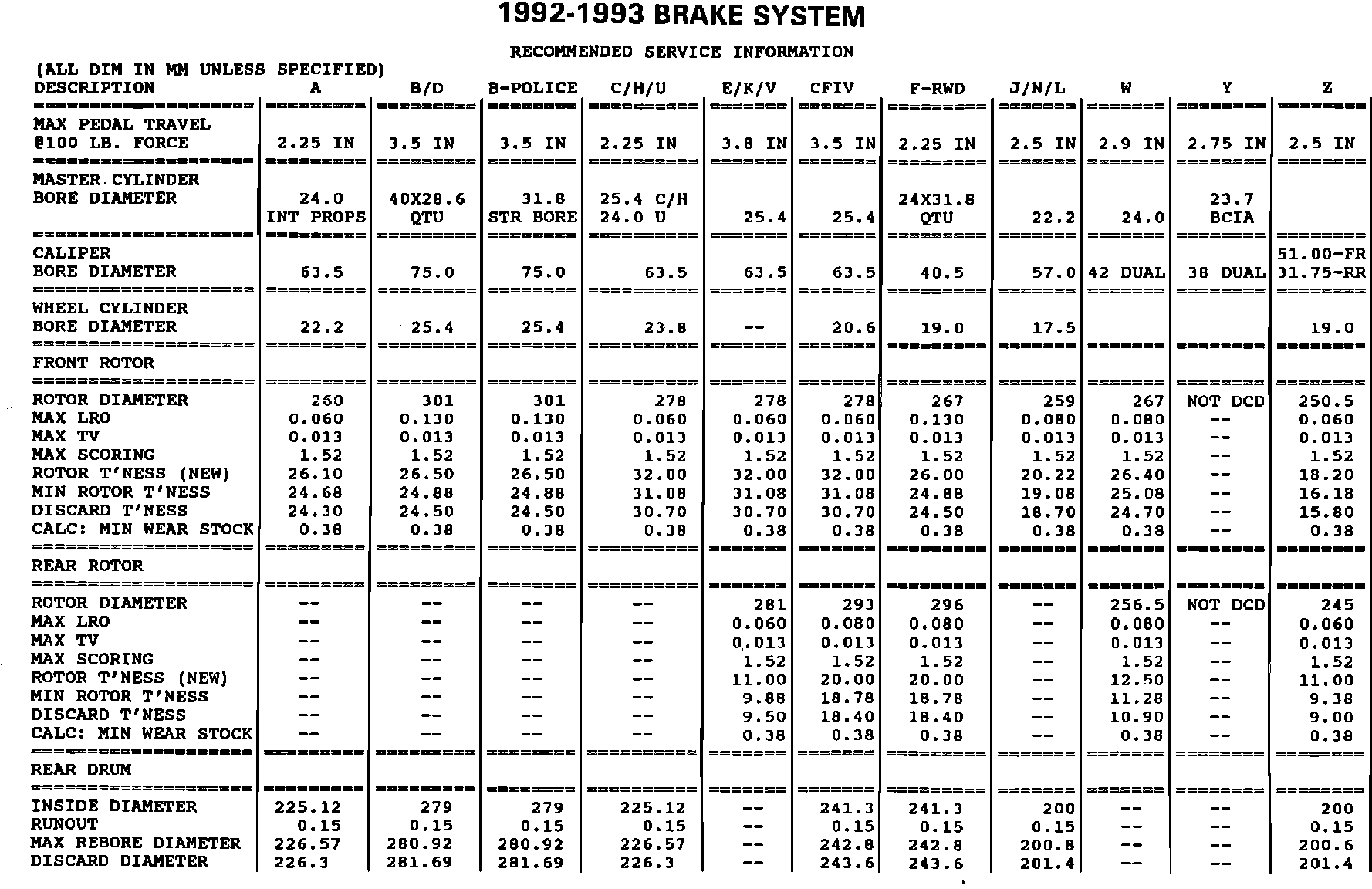

The enclosed charts give revised brake service specifications (with the exception of the Bravada). This information was omitted from some service manuals or contained errors in others. It may be beneficial to keep a copy of these charts in a plastic folder in the brake service area to allow easy access.

1991 Cutlass Calais
The following information listed below is an update to Section 5, brake rotor specifications for the 1991 Cutlass Calais. Please make the corrections listed below to your copy of the 1991 Cutlass Calais Service Manual.

1991 Cutlass Calais: Minimum thickness after refinish should be 19.08 mm (.751).
