Engine Mount, Lower - Revised Torque Specification

NUMBER: 93-U-23

CORP.REF.NO: 236117

DATE: February 1993

SECTION: 6A-L4, 6A-V6

SUBJECT:
TORQUE SPECIFICATION REVISION
- NEW ARTWORK FOR LOWER ENGINE MOUNT STRUT

MODELS/YEARS:
1992-93 ACHIEVA WITH THE 2.3L (VIN A & D)
AND 3.3L (VIN N) ENGINES





This is a service manual update to Sections 6A6 and 6A7:

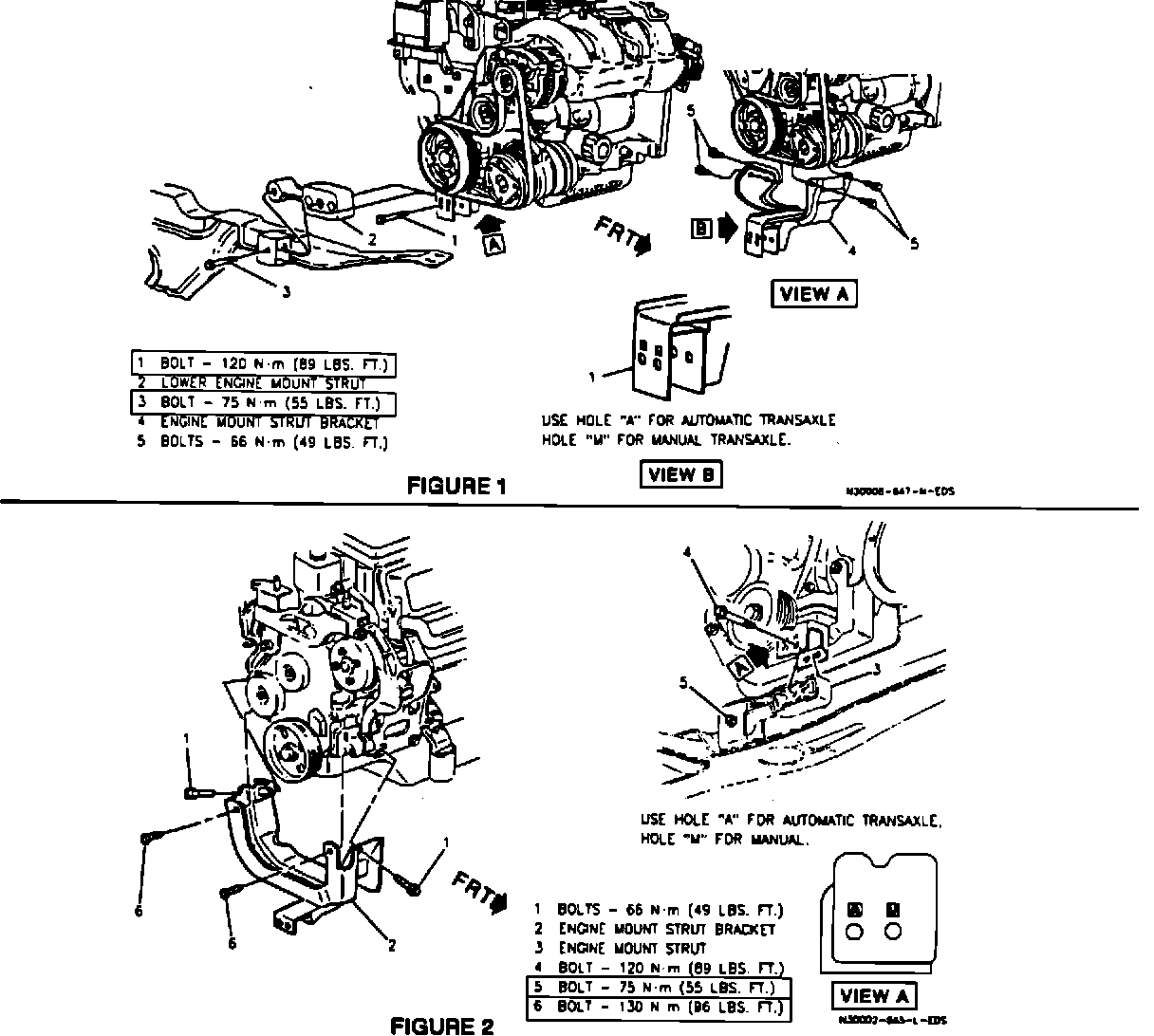

6A6-10, Figure 11 - Update with the illustration. 6A7-16, Figure 16 - Update with the illustration. 6A7-15, Figure 16 - Update with the illustration.

The torque specification for the lower engine mount strut has been revised. Refer to the illustration. The specification that has changed has a box around it.
