System Diagnosis
^ If air flow does not come from the proper outlets under one or more operating modes, at least one of the
air valves is not moving to the proper position.
^ Check the operation of the
air valves using the chart. Put
Blower Switch in HI to give a strong flow of air.

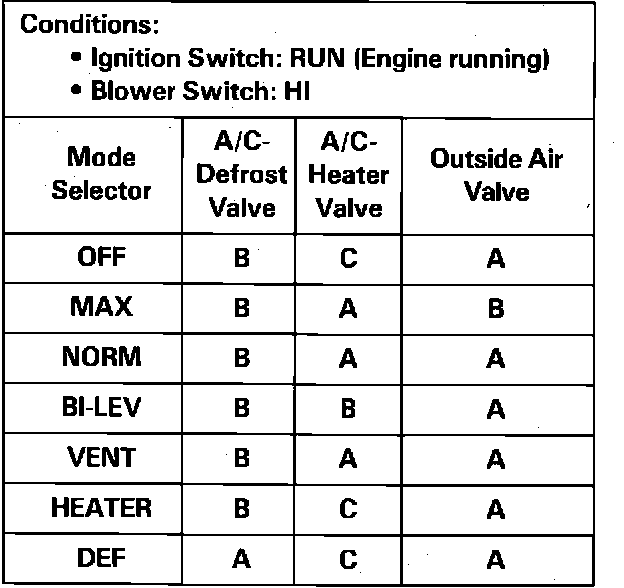

Air Valve Position Chart:
