Fuel Pump - Revised Circuit Chart A-5
NUMBER: 93-U-59
CORP.REF.NO: 316305
DATE: September 1993
SECTION: 6E2
SUBJECT:
SECTION 6E2 - REVISED CHART A-5
MODELS/YEARS:
1989-92 CUTLASS CIERA WITH THE 2.5L ENGINE (VIN R) ENGINE

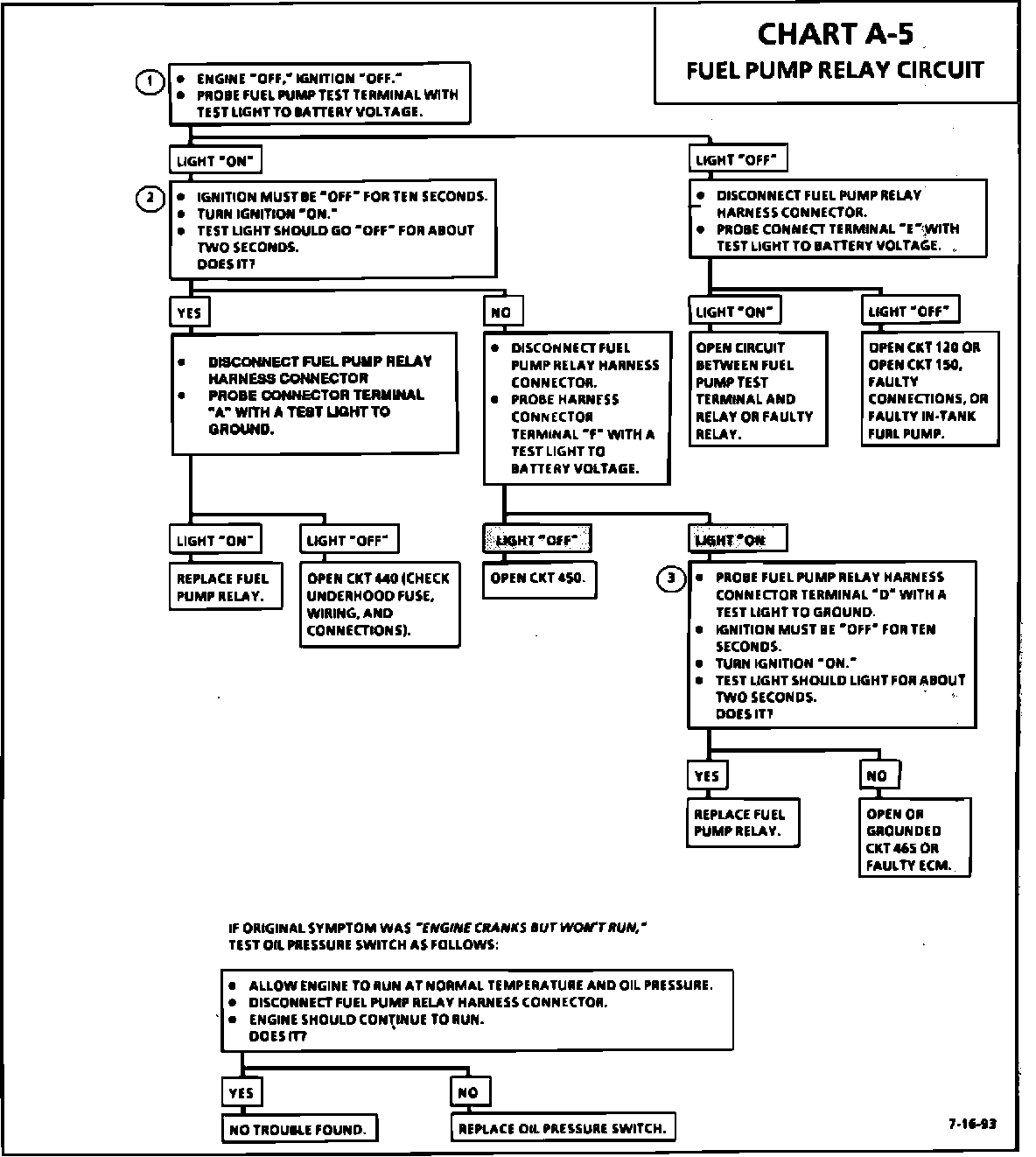

This bulletin updates Section 6E2 for the 1989-92 Cutlass Ciera Service Manual. The updated A-5 Chart represents a change in diagnosing the
fuel pump relay circuit.
