Coupe

Door Window Removal:

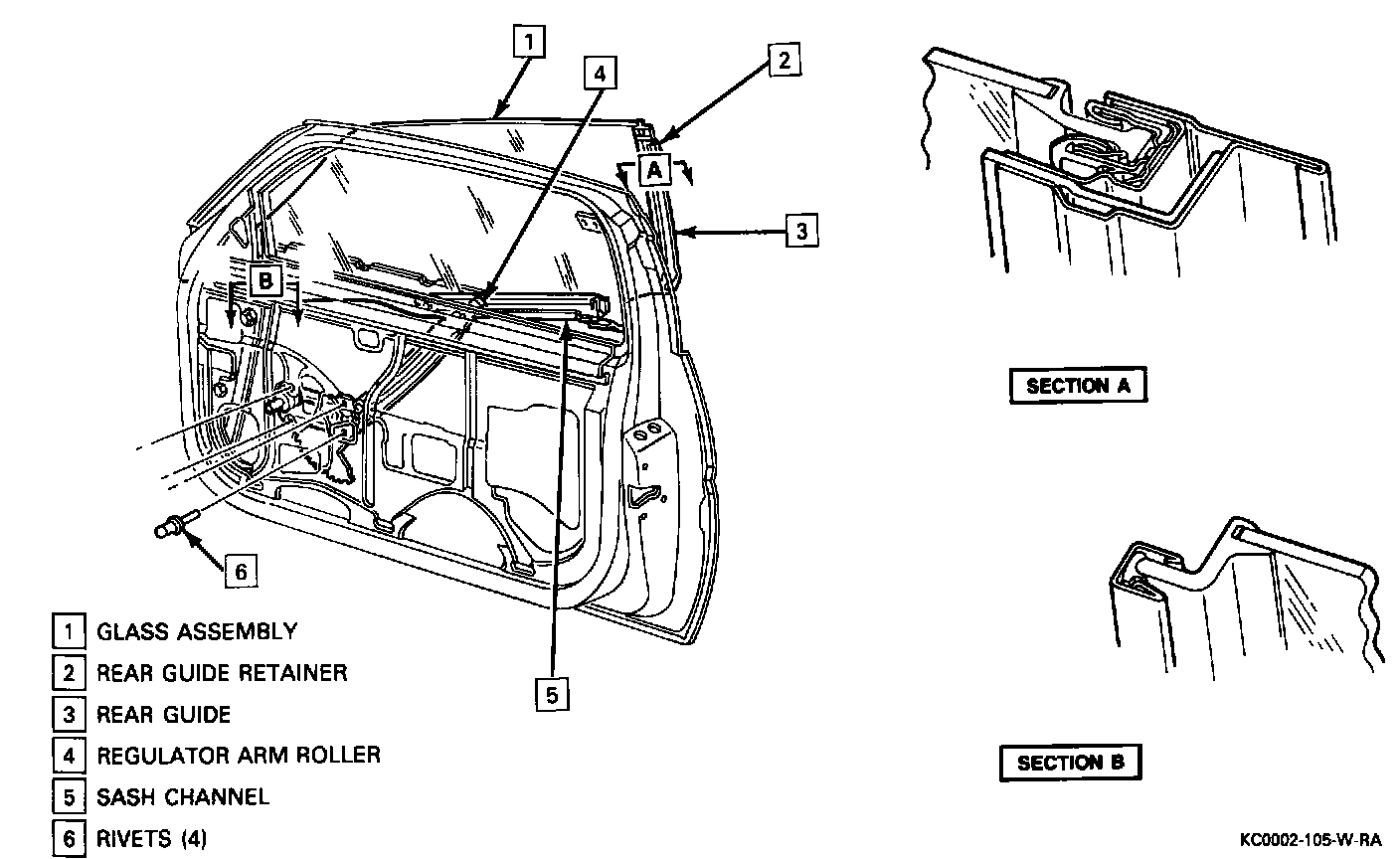

Coupe and sedan front doors use a single lift arm regulator. The sedan rear doors use a tape drive regulator. The following provides the procedures required for removal and replacement of both power and manual window regulators.

Remove or Disconnect

Important
^ Tape window to the full-up position.

1. Door trim panel.
2. Safety belt retractors.
3. Water deflector.
4. Rivets using 6.3 mm (1/4 inch) drill bit.
5. Regulator by disengaging regulator arm from sash channel.
6. Electrical connector to motor (power window systems) and remove regulator through door inner access hole.

Install or Connect

1. Regulator through access hole and attach regulator arm to sash channel.
2. Electrical connector to motor (power window system).
3. Rivets using 1/4 inch x 1/2 inch peel type rivets.
4. Water deflector.
5. Safety belt retractors.
6. Door trim panel.
