Heater Core: Service and Repair

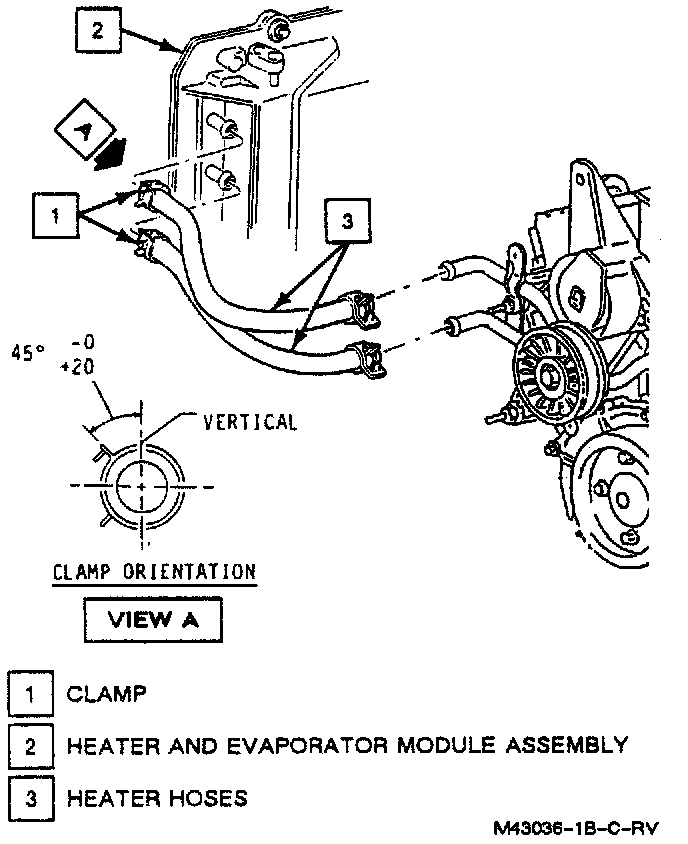

Heater Hoses:

Tool Required:
J 37097 Mubea Hose Clamp Pliers

Remove or Disconnect

1. Drain cooling system.
2. Heater hoses from heater core, using J 37097.
3. Retaining screws and A/C temperature valve actuator.
4. Retaining screws and heater core cover.
5. Retaining screws and heater core from vehicle.

Install or Connect

1. Heater core into vehicle and attaching screws.

Tighten
^ Screws to 1.4 Nm (12 lb in).

2. Heater core cover and attaching screws.

Tighten
^ Screws to 1.4 Nm (12 lb in).

3. Temperature valve actuator and screws.

Tighten
^ Screws to 1.4 Nm (12 lb in).

4. Heater hoses to heater core using tool J 37097.
5. Fill cooling system.
