Wiper Switch: Service and Repair
Fig. 38 Lock Housing Cover Removal. Standard Column:

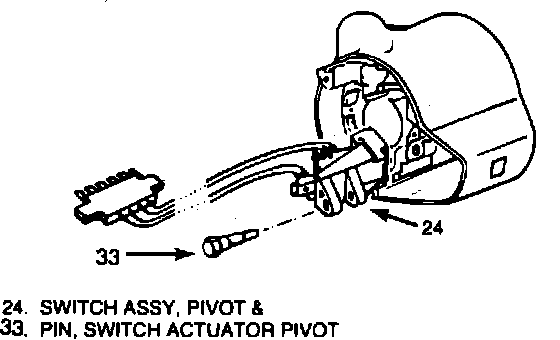

Fig. 39 Wiper Switch Removal. Standard Column:

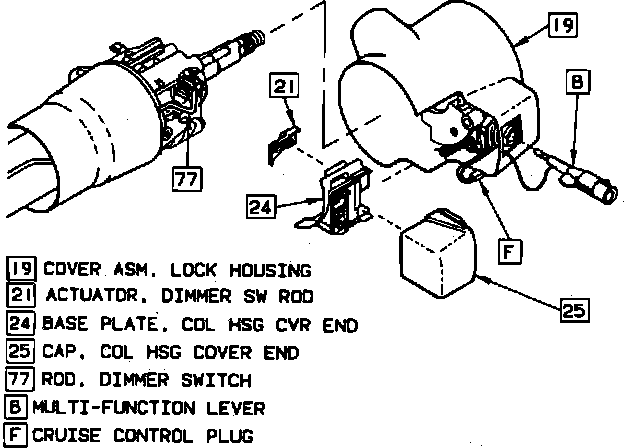

Fig. 40 Lock Housing Cover Removal. Tilt Column & Columns W/SIR:
Fig. 41 Wiper Switch Removal. Tilt Column & Columns W/SIR:
Disable the Supplemental Inflatable Restraint (SIR) system as described in MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING prior to working on or near the steering column.
1. Remove turn signal switch as outlined under STEERING SUSPENSION CHASSIS AND BODY COMPONENTS/STEERING/COMPONENT REPLACEMENT AND REPAIR PROCEDURES/TURN SIGNAL SWITCH procedure.
2. Refer to Figs. 38 through 41, for switch replacement.
3. Rearm airbag system as described under MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING.
