Throttle Position Sensor: Service and Repair

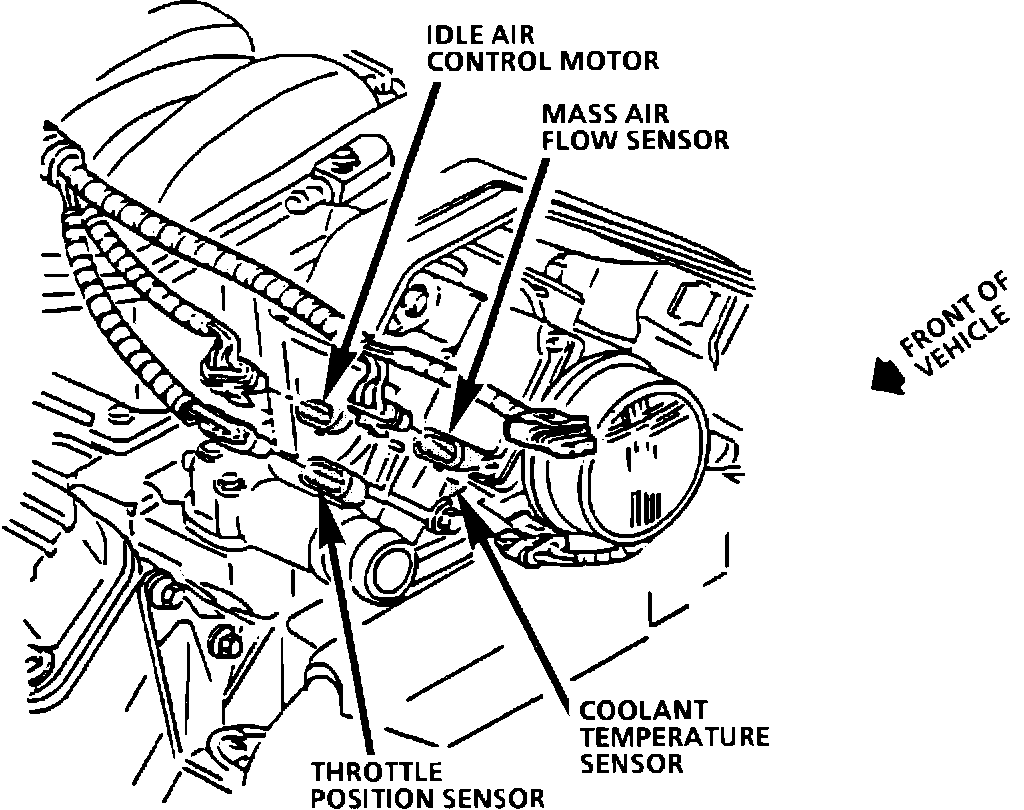

Front RH Side Of Engine:

Removal

1. Disconnect battery ground cable.
2. Remove air cleaner assembly.
3. Disconnect electrical connector.
4. Remove TP sensor attaching screws, lockwashers and retainers.
5. Remove sensor.

Installation

1. With throttle valve in the normal closed idle position, install throttle position sensor on throttle body assembly.
2. Install retainers and TP sensor screws and lock washers.
3. Reconnect electrical connector.
4. Install air cleaner assembly.
5. Reconnect battery ground cable.
