Alternator: Service and Repair

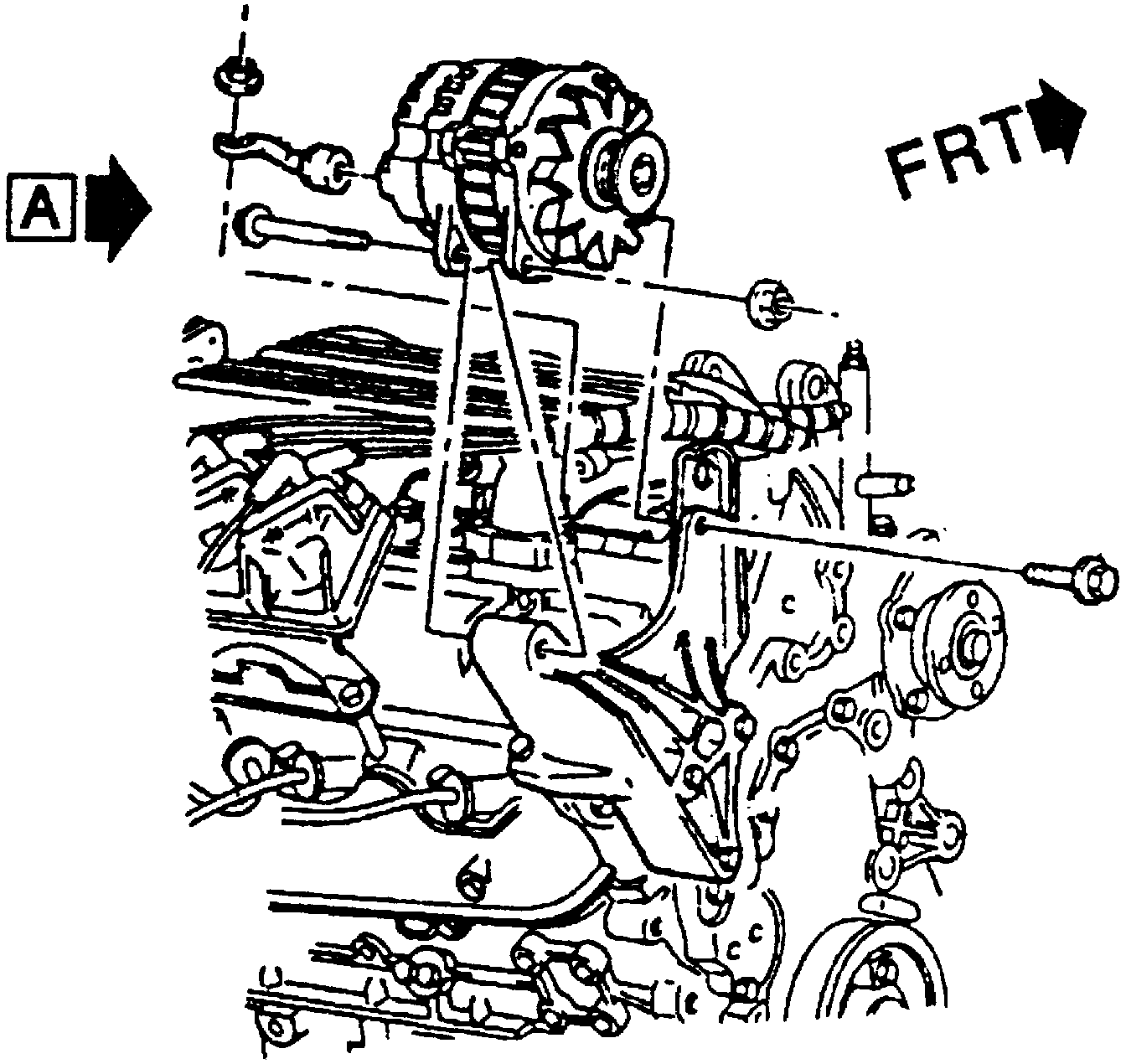

Fig. 5 Alternator Removal:
1.
Disconnect battery ground cable.
2.
Disconnect
alternator electrical connectors.
3.
Remove serpentine drive belt.
4.
Remove
alternator mounting bolts,
Fig.5 .
5.
Disconnect
alternator air inlet connector.
6.
Remove
alternator.
7.
Reverse procedure to install.
