Pictoral Views

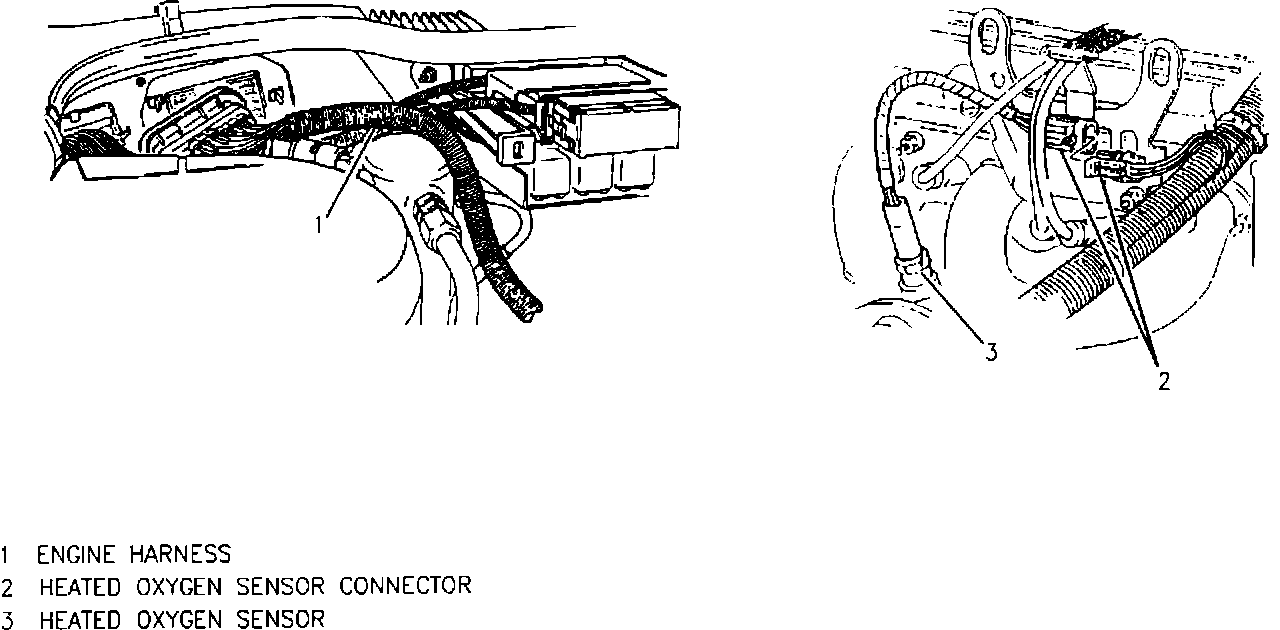

Pictorial View:
1 ENGINE HARNESS
2 HEATED OXYGEN SENSOR CONNECTOR
3 HEATED OXYGEN SENSOR

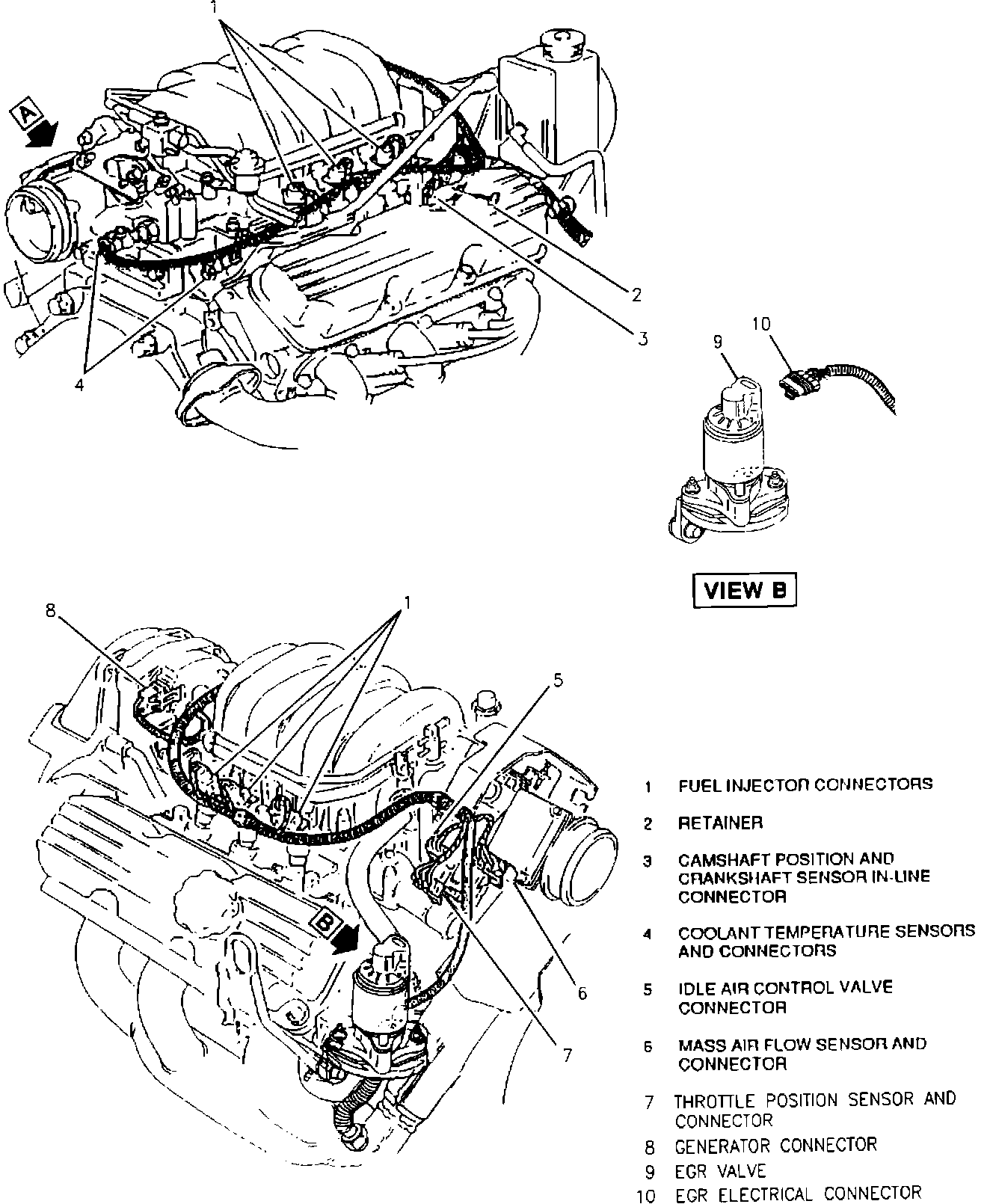

Pictorial View:
1 FUEL INJECTOR CONNECTORS
2 RETAINER
3 CAMSHAFT POSITION AND CRANKSHAFT SENSOR IN LINE CONNECTOR
4 COOLANT TEMPERATURE SENSORS AND CONNECTORS
5 IDLE AIR CONTROL VALVE CONNECTOR
6 MASS AIR FLOW SENSOR AND CONNECTOR
7 THROTTLE POSITION SENSOR AND CONNECTOR
8 GENERATOR CONNECTOR
9 EGR VALVE
10 EGR ELECTRICAL CONNECTOR

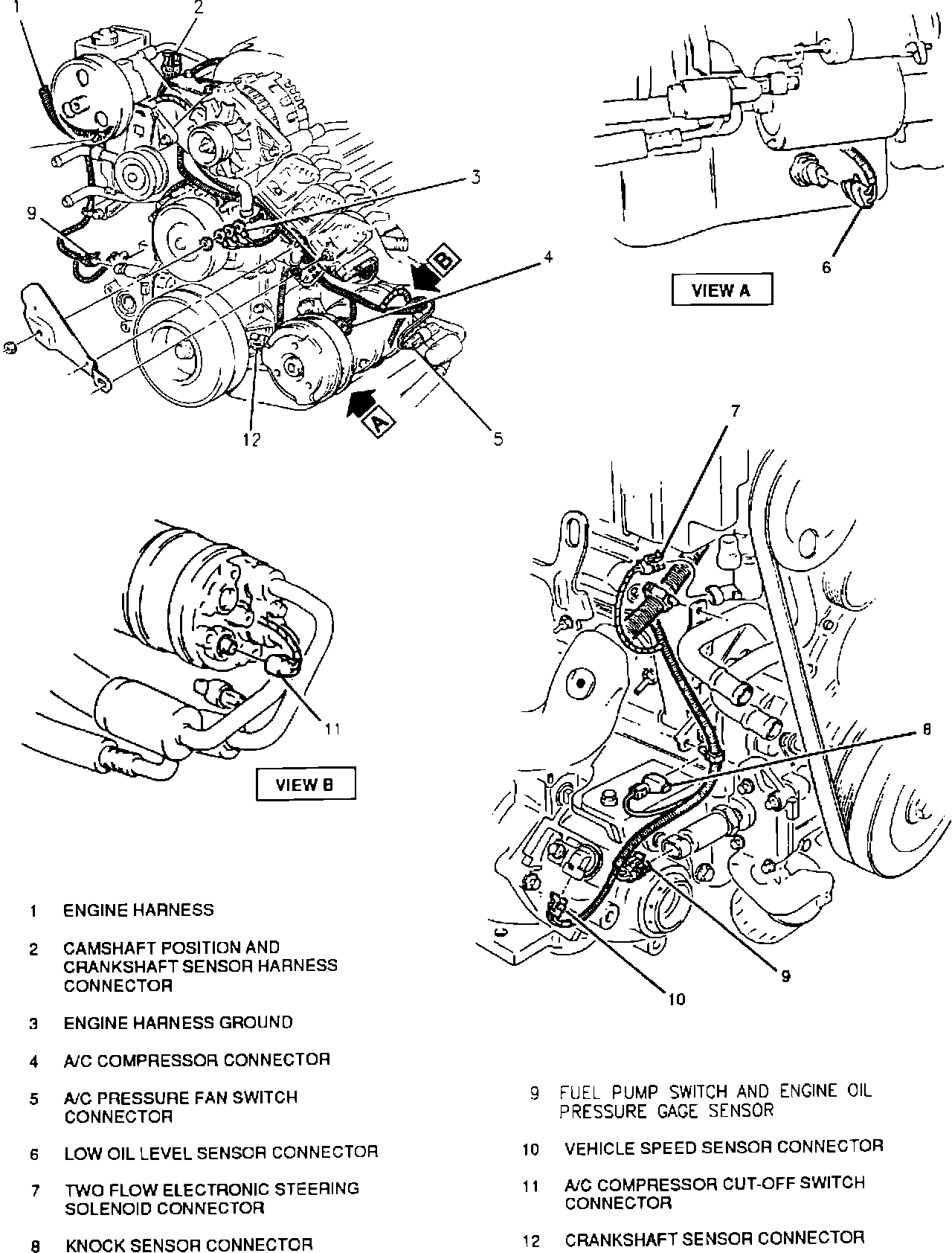

Pictorial View:
1 ENGINE HARNESS
2 CAMSHAFT POSITION AND CRANKSHAFT SENSOR HARNESS CONNECTOR
3 ENGINE HARNESS GROUND
4 A/C COMPRESSOR CONNECTOR
5 A/C PRESSURE FAN SWITCH CONNECTOR
6 LOW OIL LEVEL SENSOR CONNECTOR
7 TWO FLOW ELECTRONIC STEERING SOLENOID CONNECTOR
8 KNOCK SENSOR CONNECTOR
9 FUEL PUMP SWITCH AND ENGINE OIL PRESSURE GAGE SENSOR
10 VEHICLE SPEED SENSOR CONNECTOR
11 A/C COMPRESSOR CUT OFF SWITCH CONNECTOR
12 CRANKSHAFT SENSOR CONNECTOR

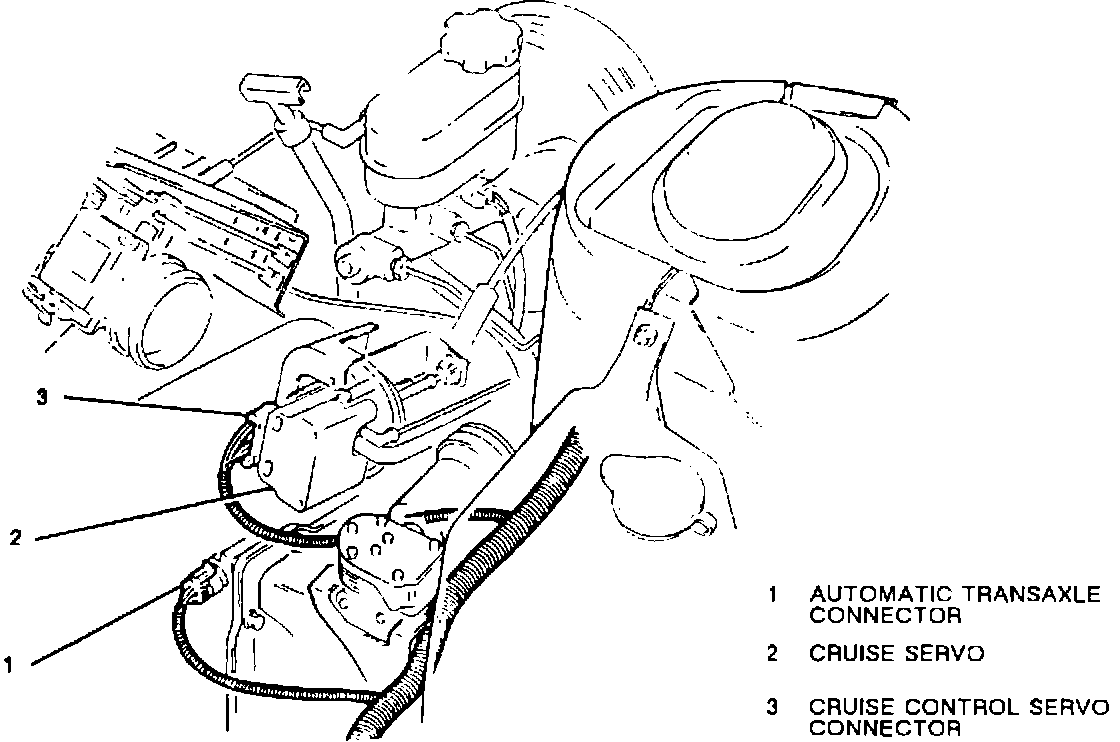

Pictorial View:
1 AUTOMATIC TRANSAXLE CONNECTOR
2 CRUISE SERVO
3 CRUISE CONTROL SERVO CONNECTOR

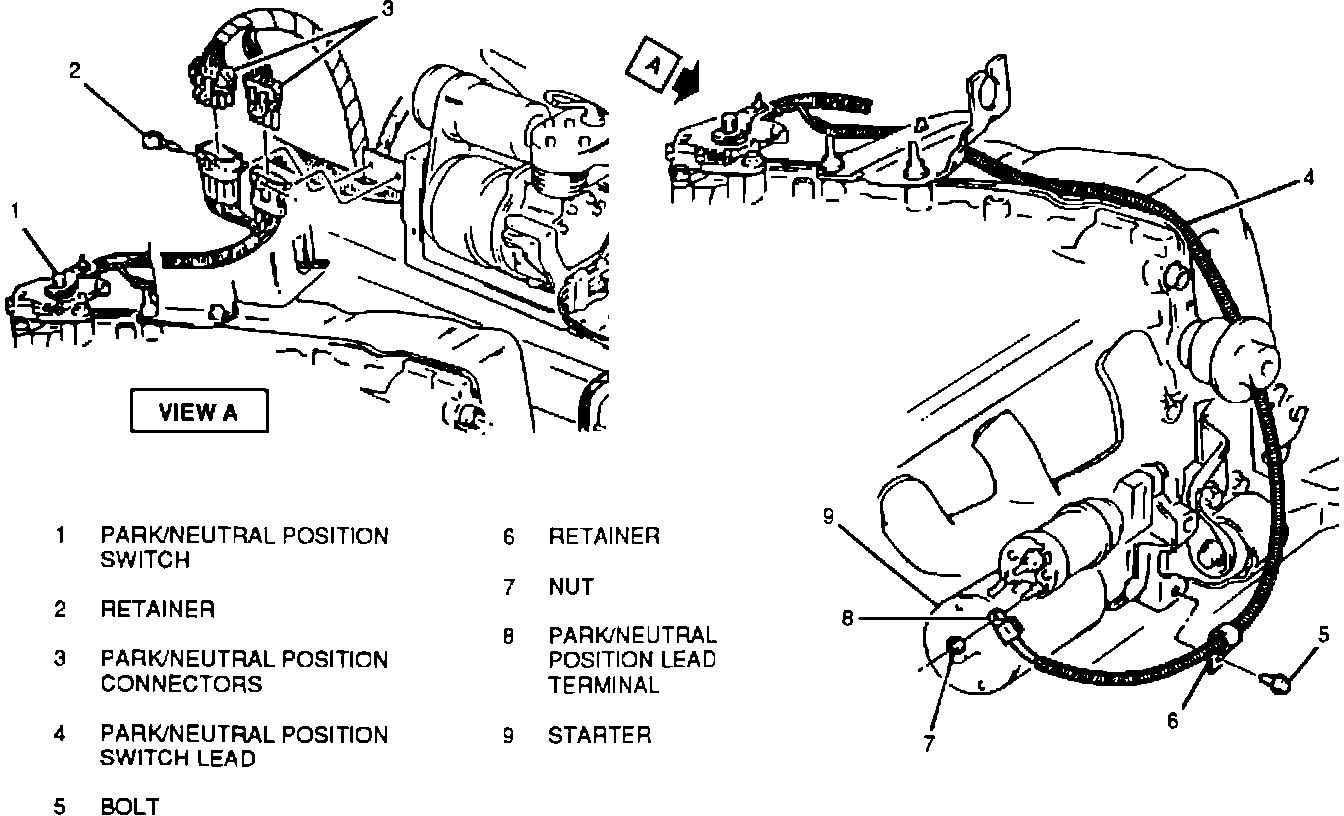

Pictorial View:
1 PARK/NEUTRAL POSITION SWITCH
2 RETAINER
3 PARK/NEUTRAL POSITION CONNECTORS
4 PARK/NEUTRAL POSITION SWITCH LEAD
5 BOLT
6 RETAINER
7 NUT
8 PARK/NEUTRAL POSITION LEAD TERMINAL
9 STARTER
