Brake Light Switch: Service and Repair

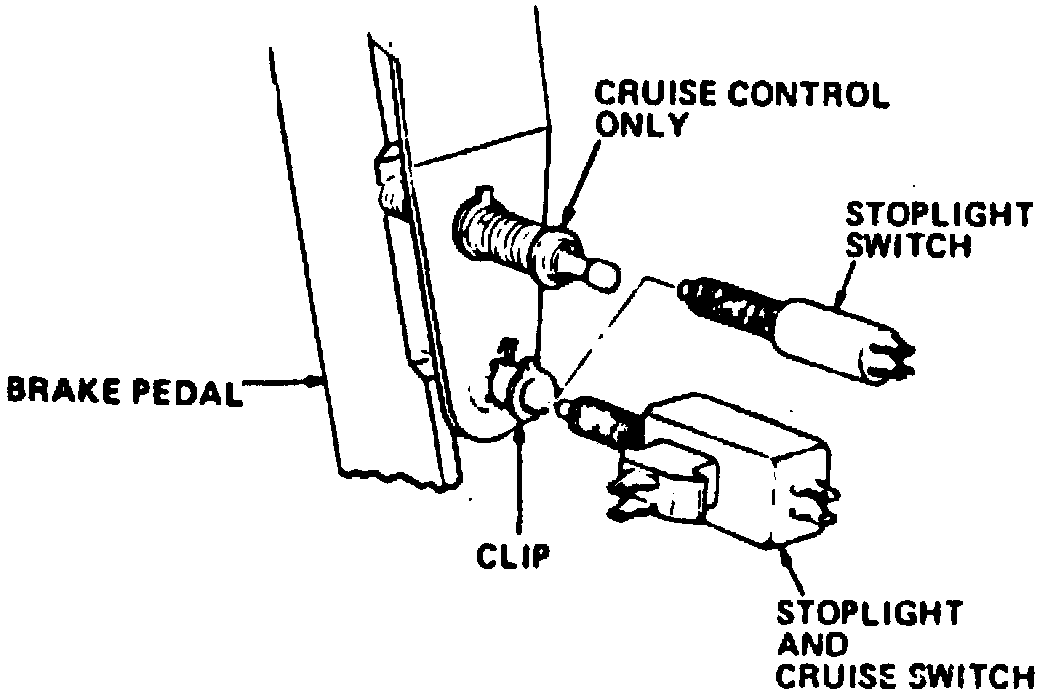

Fig. 6 Stop Light Switch Removal:
1.
Disconnect battery ground cable.
2.
Remove lower lefthand side instrument panel sound insulator.
3.
Disconnect wiring from
stop light switch located near top of the brake pedal,
Fig. 6.
4.
Remove
stop light switch.
5.
Reverse procedure to install.
