Ambient Temperature Sensor / Switch HVAC: Service and Repair

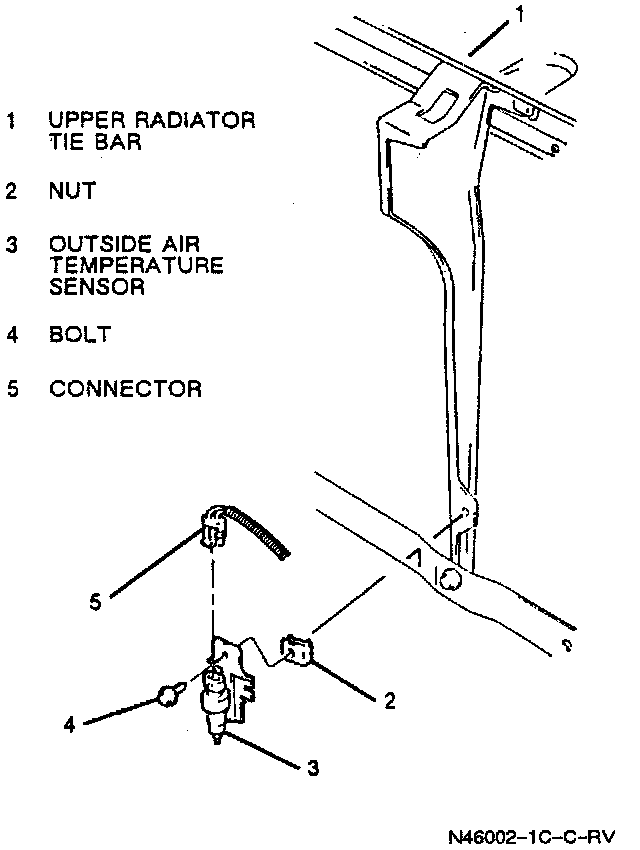

Ambient Air Temperature Sensor:
REMOVE OR DISCONNECT ^
Open hood.
1.
Electrical connector from sensor.
2.
Bolt and outside air temperature sensor.
INSTALL OR CONNECT 1.
Bolt after positioning sensor.
^
Tighten Bolt to
12 Nm (106 lb. in.).
2.
Electrical connector to sensor.
