Blower Motor: Service and Repair

BLOWER MOTOR

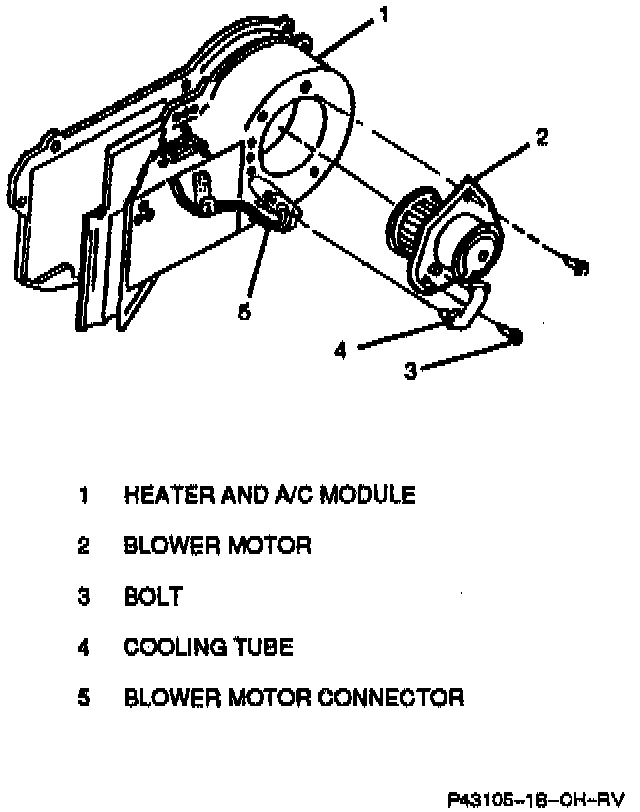

Blower Motor And Fan:

REMOVE OR DISCONNECT
1. Nuts and cross brace bar.
2. Electrical connector from blower motor.
3. Cooling tube from blower motor.
4. Screws attaching blower motor to heater and A/C module assembly.
5. Blower motor and fan from vehicle.

INSTALL OR CONNECT
1. Blower motor to heater and A/C module assembly attaching screws, after positioning blower motor.
^ Tighten Screws to 0.6 Nm (5 lb. in.).
2. Cooling tube to blower motor.
3. Electrical connector to blower motor.
4. Cross brace bar and nuts.
^ Tighten Nuts to 25 Nm (18 lb. ft.).
