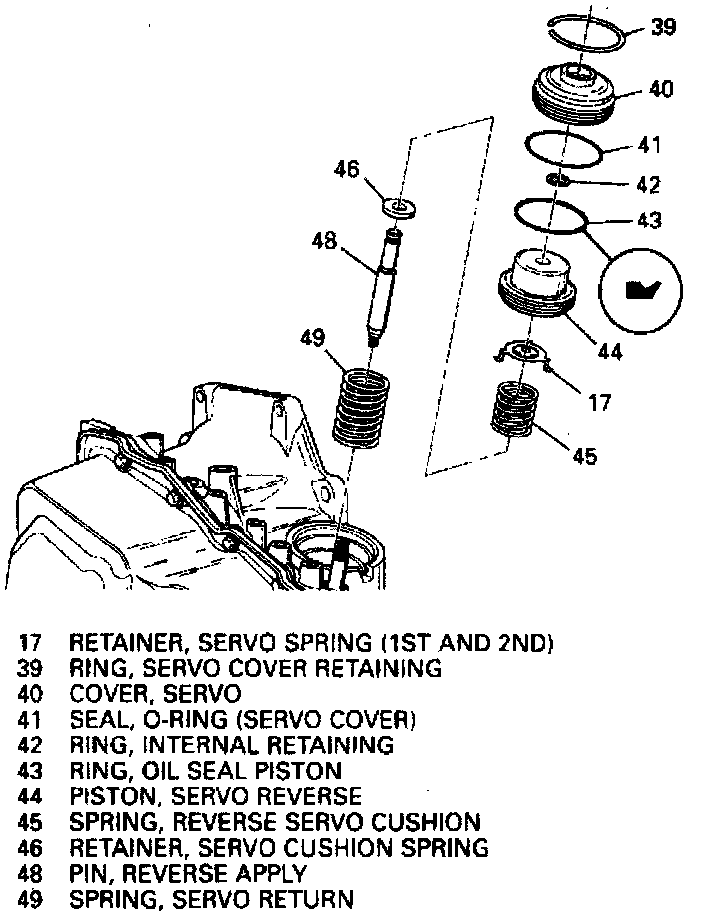

Reverse Servo Assembly Replace
1. Remove air cleaner assembly and exhaust crossover pipe.
2. Raise drivers side of car so it is higher than differential side. This will ensure reverse
band will be in the proper location.
3. Depress servo cover, then remove snap ring, servo cover, servo piston, sealing ring, apply pin and servo spring.
4. Reverse procedure to install.
