Regulator Handle

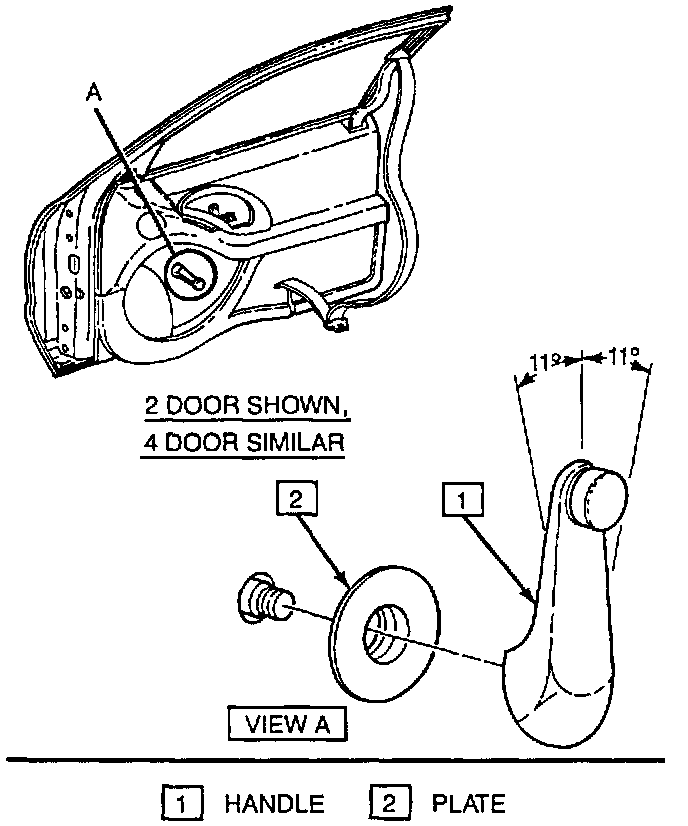

Window Regulator Handle:

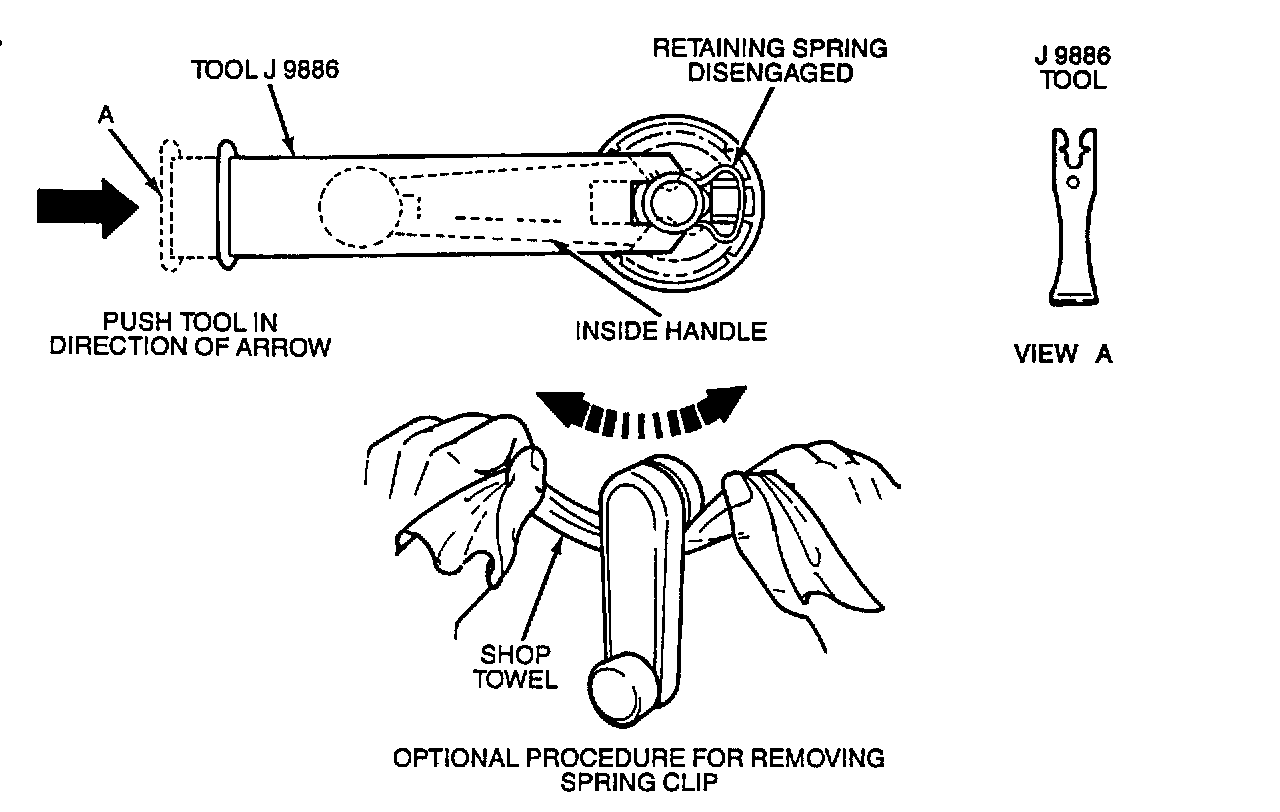

Spring Clip Tool:

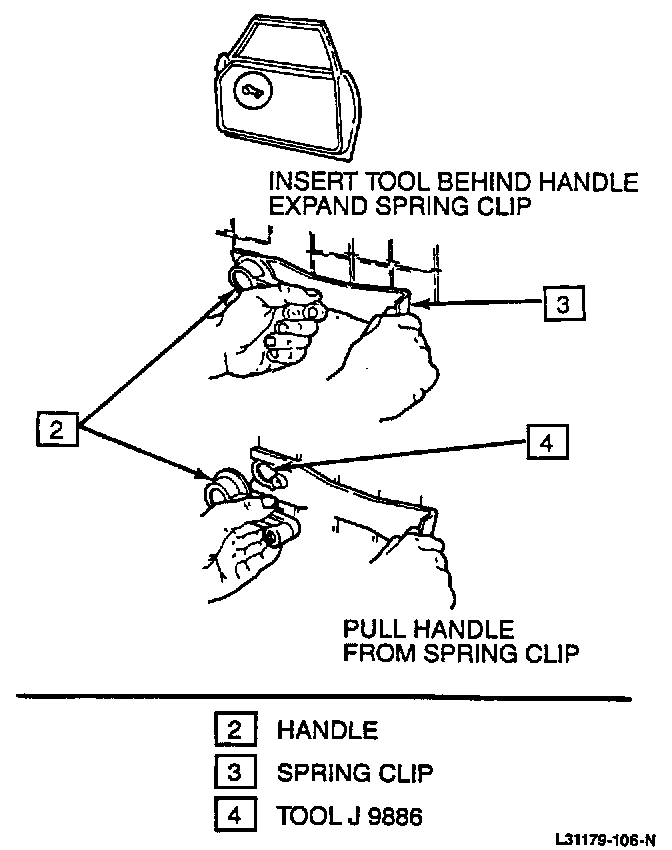

Releasing Window Regulator Handle Spring Clip:

Tool Required:
J 9886 Door Handle Clip Remover

Remove or Disconnect

1. Spring Clip by inserting tool J 9886 between handle and trim panel.
2. Window regulator handle.

Install or Connect

1. Raise window to the full up position.
2. Clip to window regulator handle.
3. Position window regulator handle, refer to illustration.
4. Push window regulator handle to secure.
