Power Locks: Service and Repair

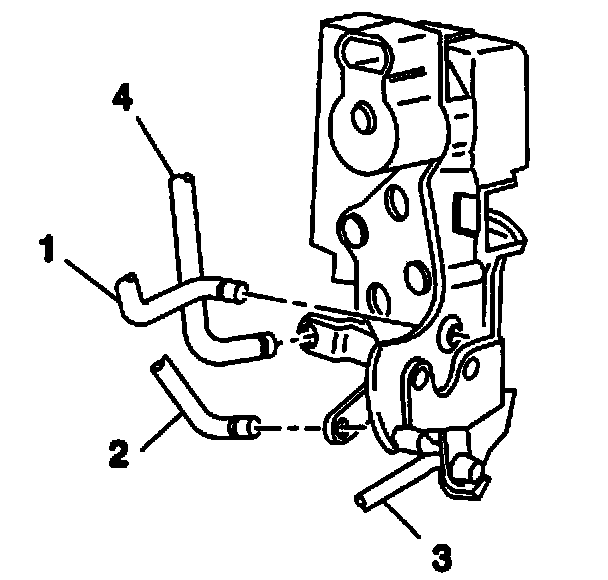

Front Door Inside Door Handle & Lock Lever Rods:

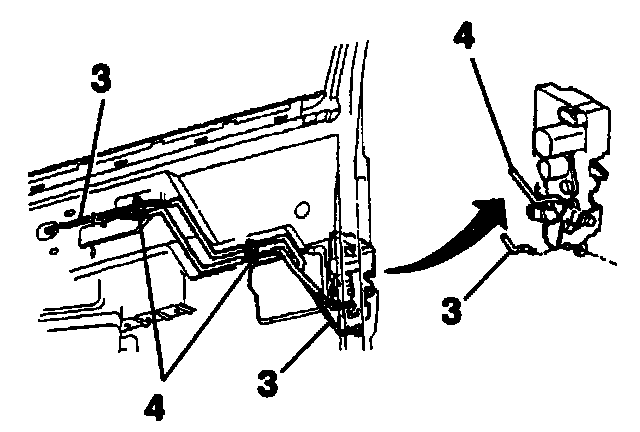

Front Door Lock Rods & Lock Actuator Assembly:

Front Door Outside Door Handle & Lock Cylinder Rods:

Remove or Disconnect

1. Trim panel.
2. Water deflector.
3. Inside handle rod (4) from lock assembly.
4. Outside handle rod (1) from lock assembly.
5. Inside lock lever rod (3) from lock assembly.
6. Outside lock cylinder rod (2) from lock assembly.
7. Power actuator wiring connector (If applicable).
8. Lock screws.
9. Lock assembly from the door.

Install or Connect

1. Lock assembly to the door.
2. Lock bolts.

Tighten
^ Lock mounting bolts to 9 N.m (80 lb. in.) on pickup models.

3. Power actuator wiring connector (If applicable).
4. Outside lock cylinder rod (2) from lock assembly.
5. Inside lock lever rod (3) from lock assembly.
6. Outside handle rod (1) from lock assembly.
7. Inside handle rod (4) from lock assembly.
8. Water deflect9r.
9. Trim panel.
