Heater Hose Replacement




HEATER HOSE REPLACEMENT

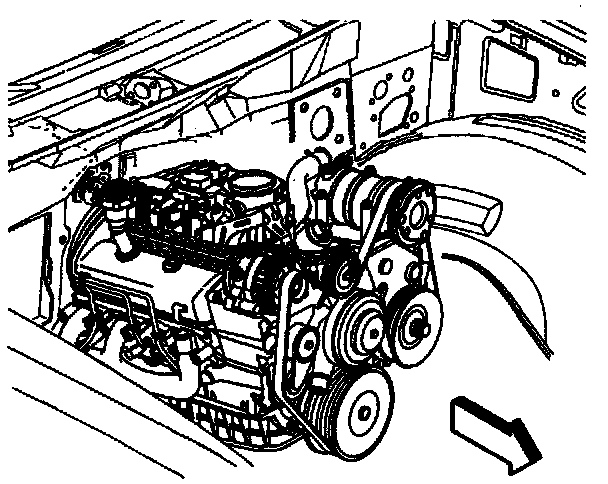

Heater Hose Routing To Heater:




Heater Hose Routing To The Engine:




Heater Hose Routing To Heater:

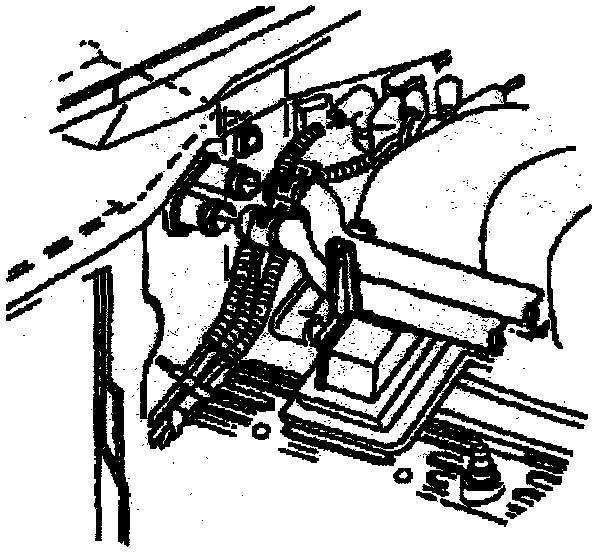

Heater Hose Routing Through The Retainer:




Heater Hose Routing Through The Thermostat Housing Bracket Retainer:






REMOVE OR DISCONNECT
1. Engine coolant.
2. Heater inlet hose clamps.
3. Heater inlet hose from heater hose fitting.
4. Heater inlet hose from heater core.
5. Heater outlet hose clamps.
6. Heater outlet hose from heater hose fitting.
7. Heater outlet hose from heater core.

INSTALL OR CONNECT
1. Heater outlet hose to heater core.
2. Heater outlet hose to heater hose fitting.
3. Heater outlet hose clamps.
4. Heater inlet hose to heater core.
5. Heater inlet hose to heater hose fitting.
6. Heater inlet hose clamps.
7. Engine coolant.
^ Check the system for leaks.
