External Components

^ Tools Required:
- J 8092 Driver Handle
- J 33833 Bearing Installer
- J 36372 Bearing Installer
- J 33843 Seal Installer
- J 33831 Seal Installer
- J 33832 Bearing Installer

INSTALL OR CONNECT

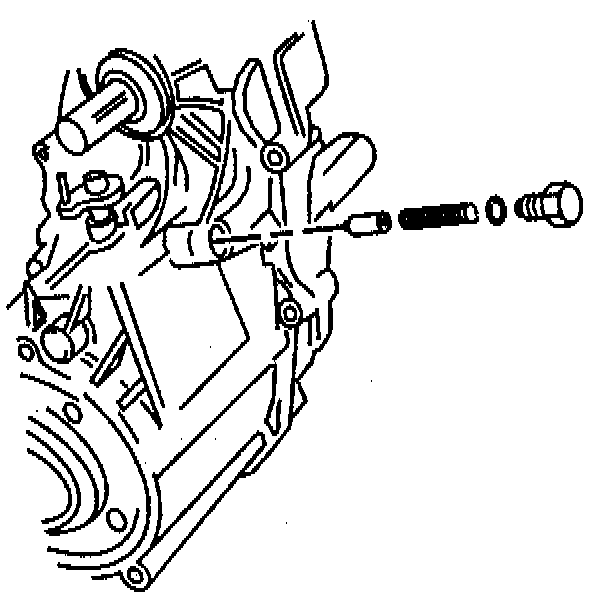

1. Detent plunger, detent spring, O-ring seal, and detent plug into front case half.
- Tighten detent plug to housing to 15 Nm (11 ft. lbs.).

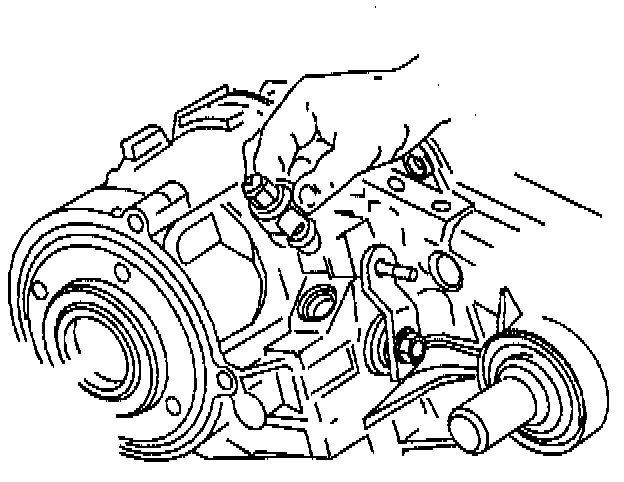

2. Vehicle speed sensor and O-ring to the rear housing.
- Tighten vehicle speed sensor to 31 Nm (23 ft. lbs.).

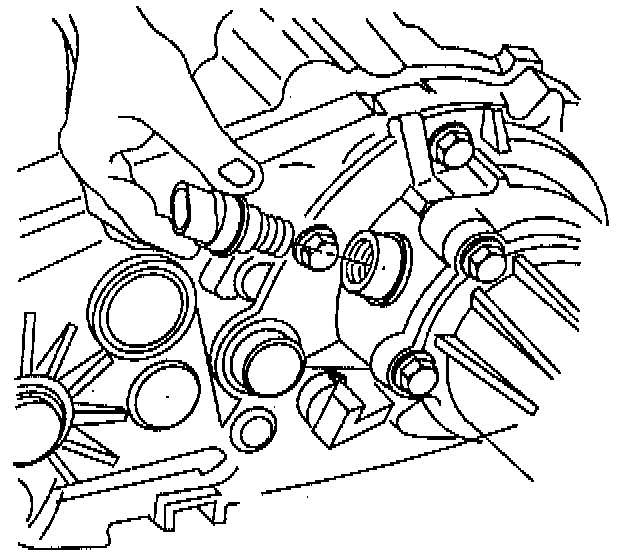

3. Vacuum switch and O-ring to the front case housing.
- Tighten vacuum switch to 24 Nm (17 ft. lbs.).
