External Components
INSTALL OR CONNECT

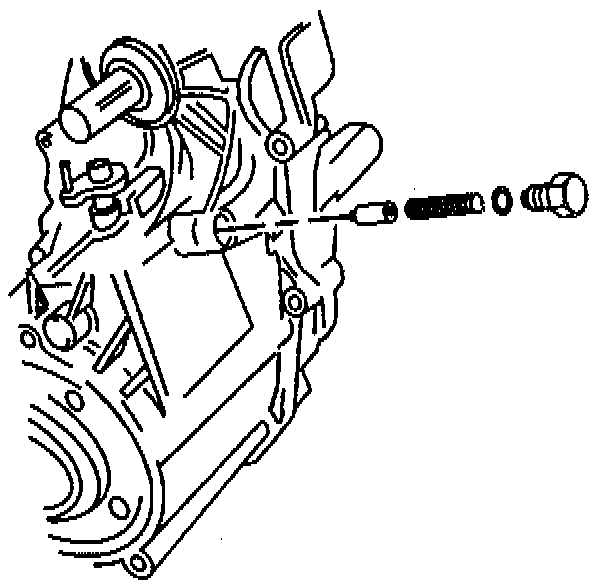

1. Detent plunger, detent spring, O-ring seal, and detent plug into front case half.
- Tighten detent plug to 15 Nm (11 ft. lbs.).

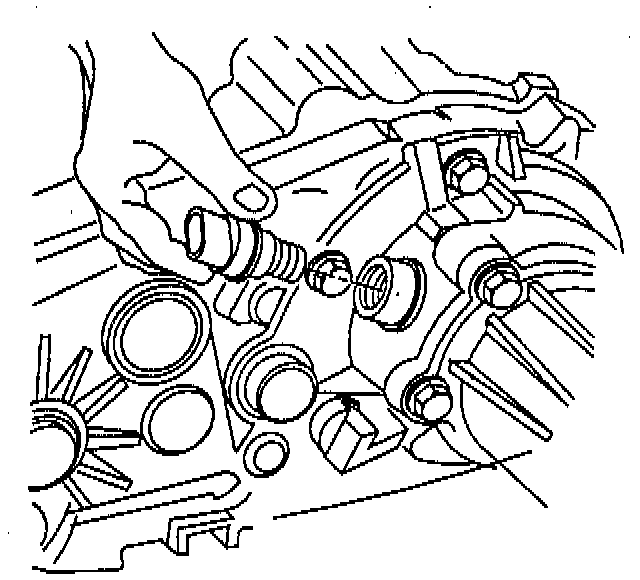

2. Vehicle speed sensor and O-ring to the rear retainer housing.
- Tighten vehicle speed sensor to 31 Nm (23 ft. lbs.).

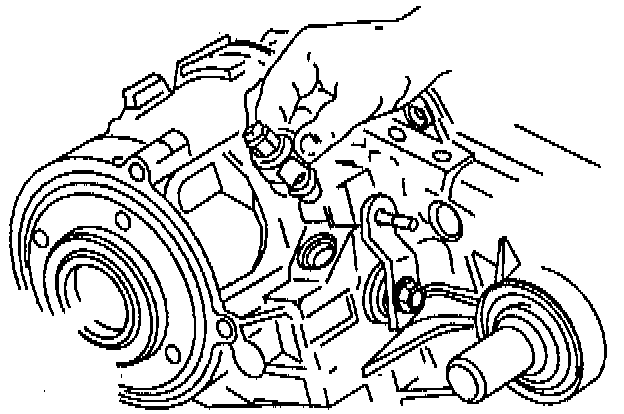

3. Vacuum switch and O-ring to the front case housing.
- Tighten Vacuum switch to 24 Nm (17 ft. lbs.).
4. Encoder motor to the transfer case bolts.
- Tighten Encoder motor bolts to 18 Nm (13 ft. lbs.).
