Inside Door Handle

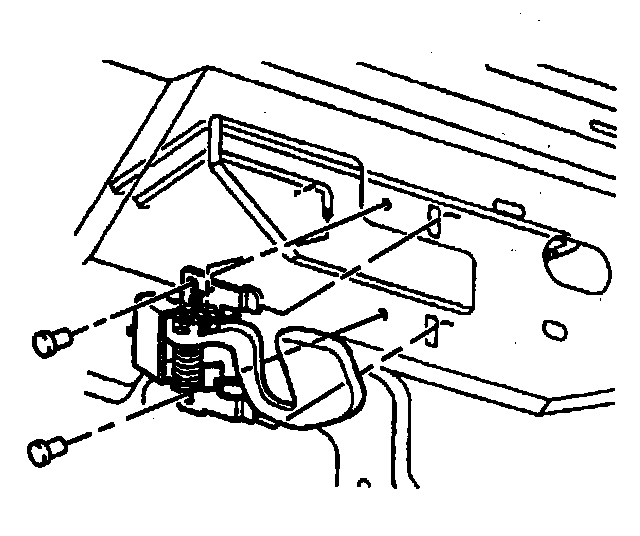

Front Door Inner Handle:

Remove or Disconnect

Tool Required:
J 34940 Rivet Gun

1. Trim panel.
2. Water deflector.
3. Inside door handle rivets.
^ Drill out the rivet heads using a 5 mm (3/16 in.) drill bit.
4. Inside door handle.
5. Control rod (2) and clip from the handle.

Install or Connect

1. Control rods (2) and clip to the handle.
2. Inside door handle.
3. Handle Rivets housing using J 34940.
4. Water deflector.
5. Trim Panel.
