Compressor Replacement

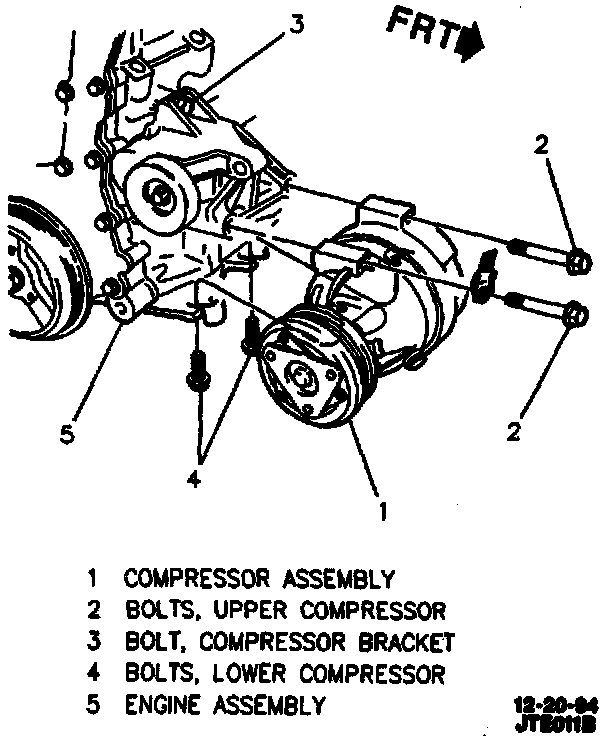

A/C Compressor Mounting - 2.4L:

Tool Required:
J 39500 A/C Refrigerant Recovery, Recharging, and Recycling Station

Remove or Disconnect

1. Negative battery cable.
2. Serpentine belt.
3. Recover refrigerant.
4. Raise vehicle.
5. Engine splash shield.
6. Compressor hose assembly and discard sealing washers.
7. Plug or tape compressor/condenser hose end to prevent moisture contamination.
8. Clutch electrical connector from compressor.
9. Compressor bolts.
10. Compressor.

Important

^ If replacing the compressor, refer to "Refrigerant Oil Distribution".

Install or Connect

1. Compressor and mounting bolts.
2. Electrical connector.
3. Compressor hose assembly.
4. Engine splash shield.
5. Lower vehicle.
6. Serpentine drive belt. Refer to under hood label for routing.
7. Negative battery cable.
8. Evacuate and recharge system.
9. Leak test.
10. check system operation.
