Crankshaft Position Sensor: Locations

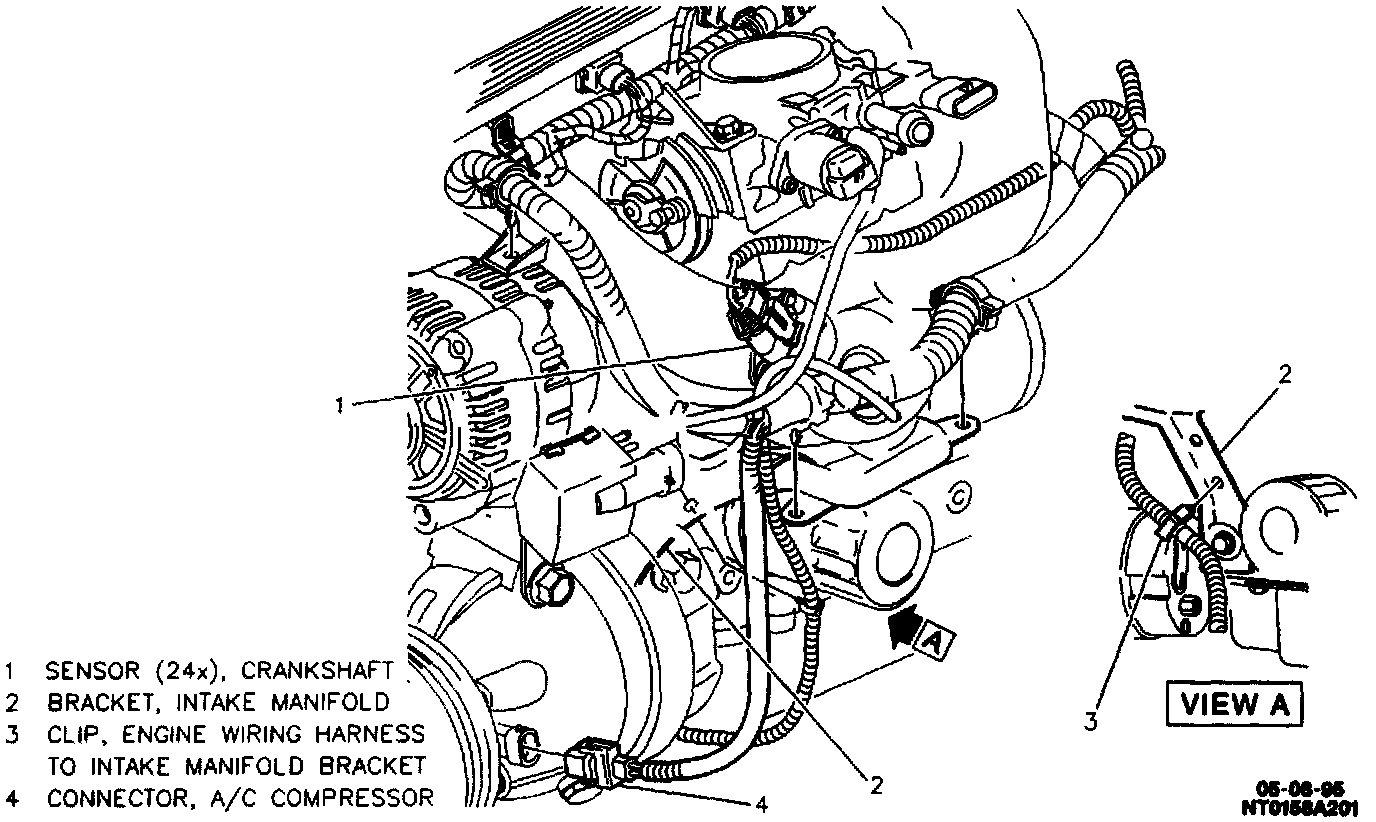

CRANKSHAFT POSITION SENSORS (CKP)Front Of Engine:
The 24X Crankshaft Position Sensor (CKP) is located in the front of engine.
RH Front Of Engine:
The 7X Crankshaft Position Sensor (CKP) is located in the right front side of engine.
