Intake Manifold Torque

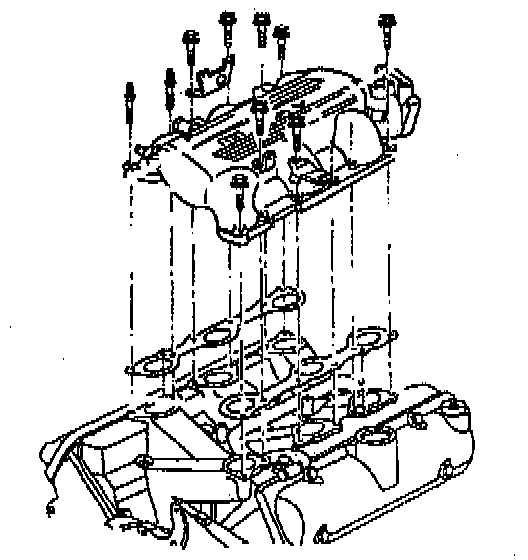

TIGHTENING SPECIFICATIONS Upper Bolts 25 N.m (18 lb ft)

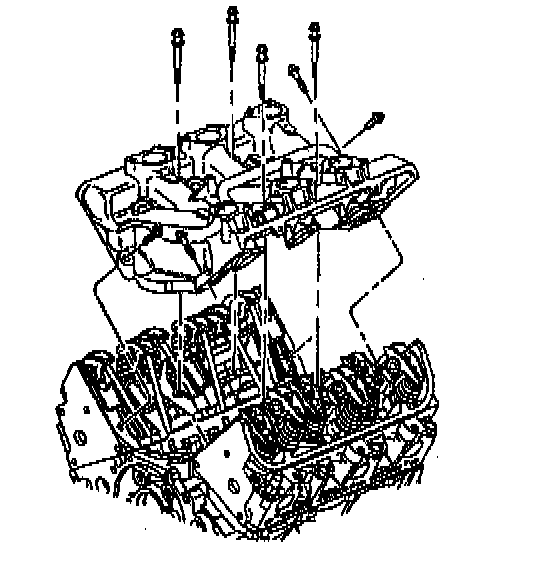

Lower Bolts Apply sealant GM P/N 12345382 to the threads of the bolts.
Torque vertical bolts
13 N.m (115 lb in)
Torque diagonal bolts
13 N.m (115 lb in)
Notice: The OEM service manual does not provide a torque sequence for the upper or lower intake manifolds.
