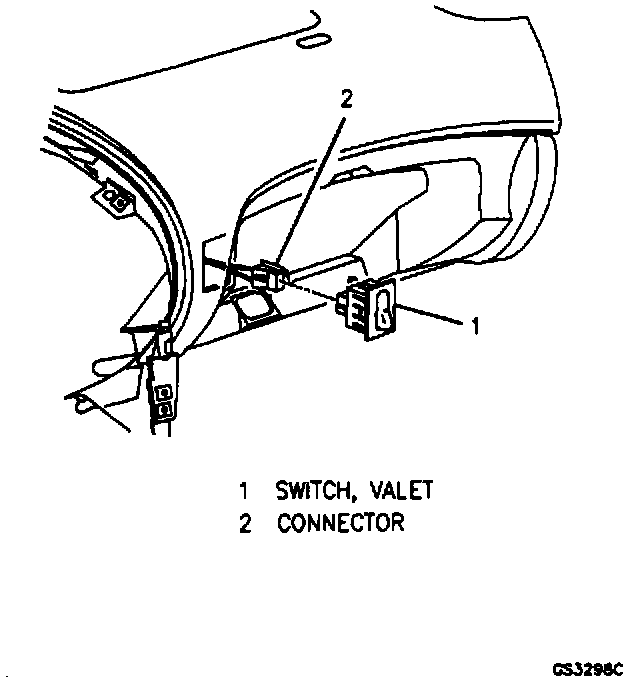

Antitheft Mode Switch: Service and Repair

Description:






Remove or Disconnect
1. Open I/P storage compartment.
2. Carefully pry switch outward.
3. Electrical connector.
4. Switch.

Install or Connect
1. Electrical connector to switch.
2. Switch to "P storage compartment.
