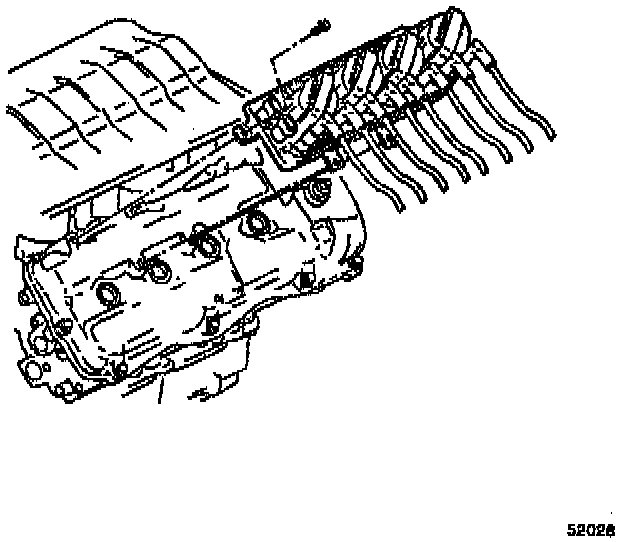

Ignition Module Removal
1.
Disconnect the spark plug wires from the
spark plugs.
2.
Remove the ignition system module retaining bolts from the right (rear) camshaft cover.
3.
Remove the ignition system module from the camshaft cover with the spark plug wires attached.
