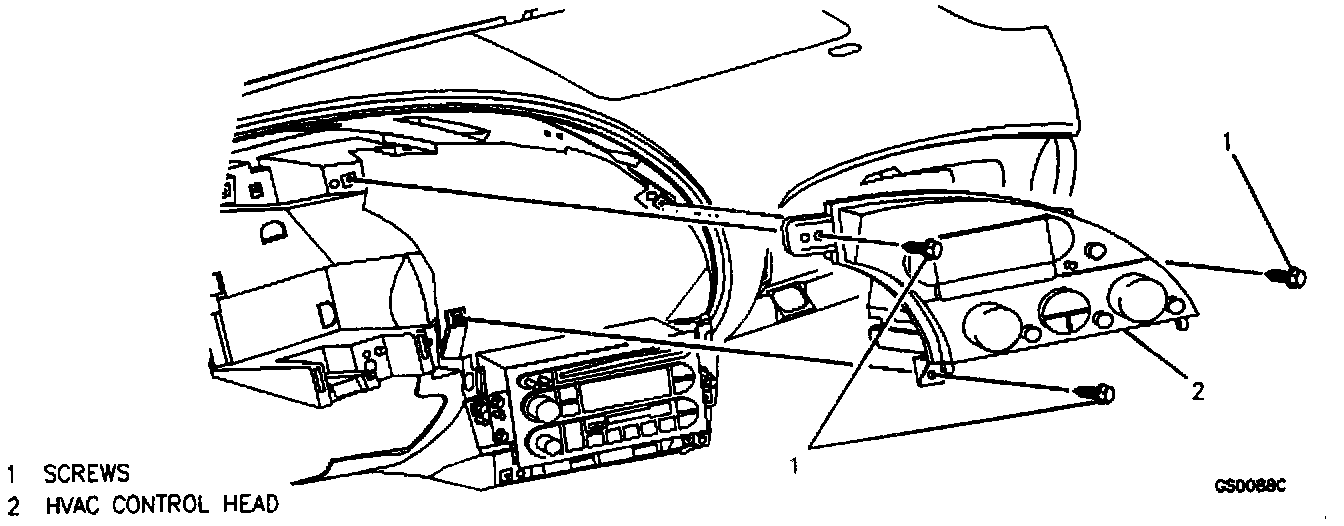

Control Assembly: Service and Repair
Description:
Remove or Disconnect 1.
I/P upper trim pad.
2.
Screws (1).
3.
HVAC control head (2) from I/P assembly.
4.
Electrical connectors from HVAC control head.
Install or Connect 1.
Electrical connectors to control head.
2.
Control head to I/P assembly.
3.
Screws (1).
4.
I/P upper trim pad.
