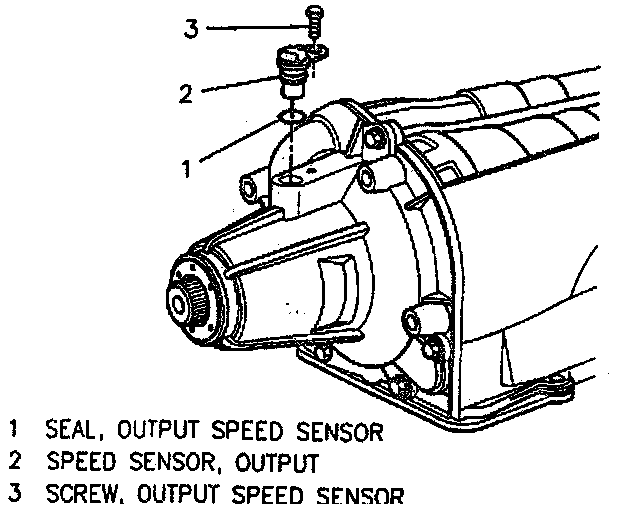

Vehicle Speed Sensor: Service and Repair
REMOVE OR DISCONNECT 1.
Raise vehicle and support.
2.
Electrical connector at sensor.
3.
Retaining bolt and sensor.
INSTALL OR CONNECT 1.
Sensor and retaining bolt.
Tighten
-
Bolt to
10 N.m (89 lb. in.).
2.
Electrical connector at sensor.
3.
Lower vehicle.
