Remote Keyless Entry Module Replacement

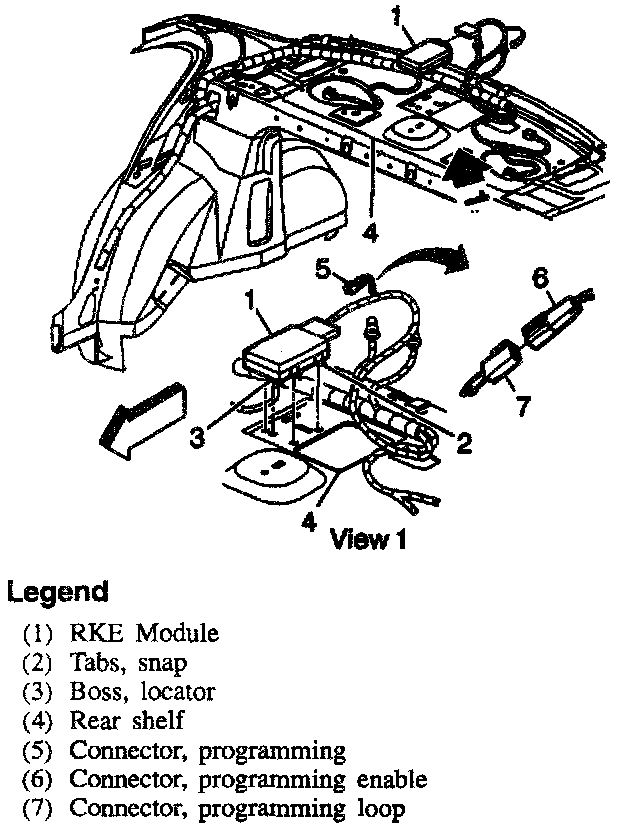

Module Mounting And Wiring (Typical):

REMOVE OR DISCONNECT

1. Negative battery cable.
2. Open rear compartment lid.
3. Remote control door lock receiver located between rear package shelve and rear package shelve cover, just to the right of the center access hole. Compress the four tabs and slid the remote door lock receiver down through the access hole.
4. Electrical connector.

INSTALL OR CONNECT

1. Electrical connector.
2. Module through center access hole and ensure mounting tabs are snapped in place.
3. Close rear compartment lid.
4. Negative battery cable.
5. Reprogram new receiver to transmitter(s). Refer to Reprogramming Remote Control Door Lock Receiver to Transmitter.
