Cruise Control Module

The cruise control module assembly is mounted on the right front inner fender well. The module assembly has an electronic controller and an electric stepper motor to vary the throttle with each different cruise control mode. The module is serviced as an assembly.

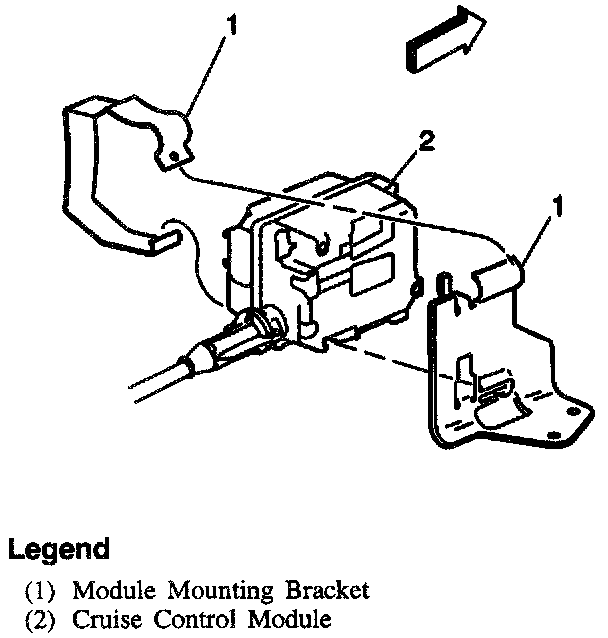

Cruise Control Module To Bracket:

Cruise Control Module Mounting Bracket To Fender Well:

Remove Or Disconnect
1. Negative battery cable.
2. Cruise control cable at engine bracket and throttle body fuel injection (TBI) cam.
3. Cruise control cable from module assembly.
4. Electrical connector from module assembly.
5. Unclip top of module hinged retaining strap from bracket.
6. Module assembly from mounting bracket.
7. Two bolts from mounting bracket.
8. Mounting bracket from right front inner fender well.

Install Or Connect
1. Mounting bracket to right front inner fender well.
Tighten
^ Bolts to 10 N.m (89 lb in).
2. Module assembly to mounting bracket.
3. Electrical connector to module.
4. Cruise control cable to module assembly.
5. Cruise control cable to engine bracket and TBI cam.
6. Adjust cruise control cable.
7. Negative battery cable.
