Cruise Control Switch Assembly

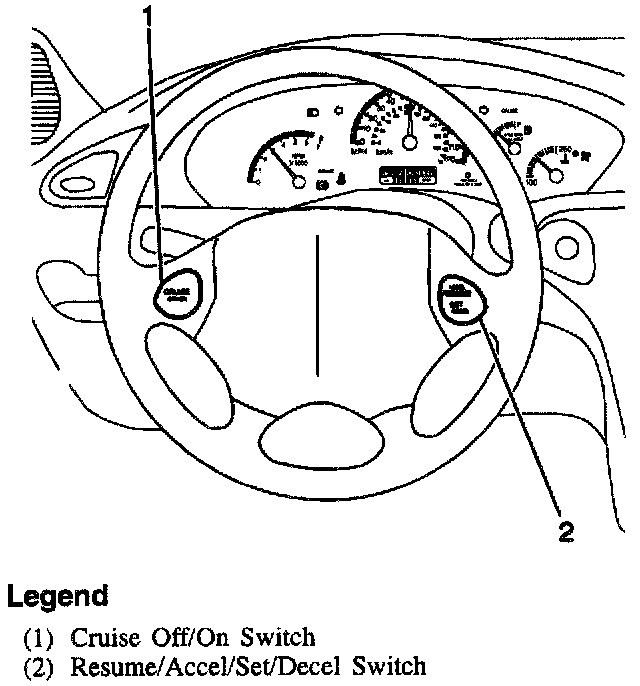

Cruise Control Steering Wheel Switches:

Cruise Control Steering Wheel Switch Removal:

REMOVE OR DISCONNECT

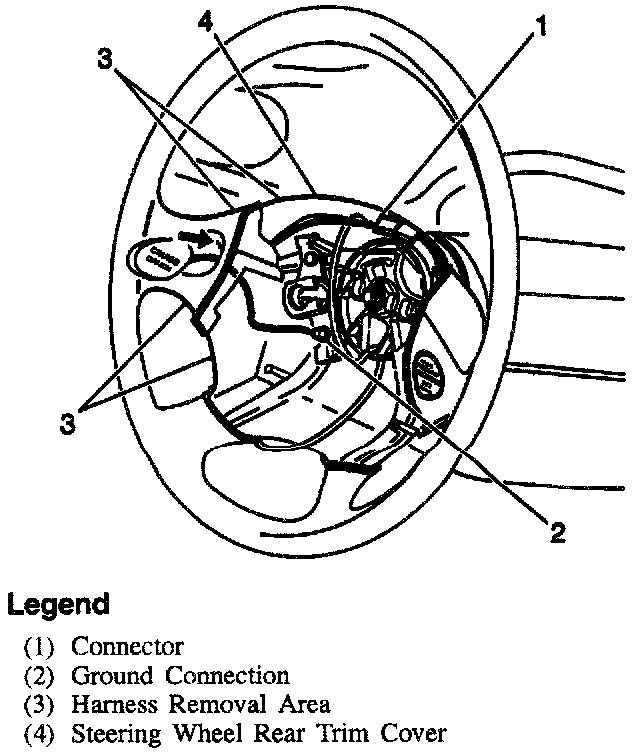

1. Driver's side inflator module.
2. Ground wire from left side of steering wheel.
3. In out left switch from front side of steering wheel.
4. Rotate switch 90 degrees and feed switch back through opening in steering wheel.
5. Push back steering wheel rear trim cover to gain enough clearance to route switch wires between back side of steering wheel and cover.
6. Pry out right switch from front side of steering wheel.
7. Rotate switch 90 degrees and feed switch back through opening in steering wheel.
8. Push back steering wheel rear trim cover to gain enough clearance to route switch wires between back side of steering wheel and cover.
9. Switch assembly from steering wheel.

INSTALL OR CONNECT
1. Push back steering wheel rear trim cover to gain enough clearance to route switch wires between back side of steering wheel and cover.
2. Feed right switch from back side through opening in steering wheel.
3. Right switch into front side of steering wheel.
4. Push back steering wheel rear trim cover to gain enough clearance to route switch wires between back side of steering wheel and cover.
5. Feed left switch from back side through opening in steering wheel.
6. Left switch into front side of steering wheel.
7. Driver's side inflator module.
