Fuse Block: Service and Repair

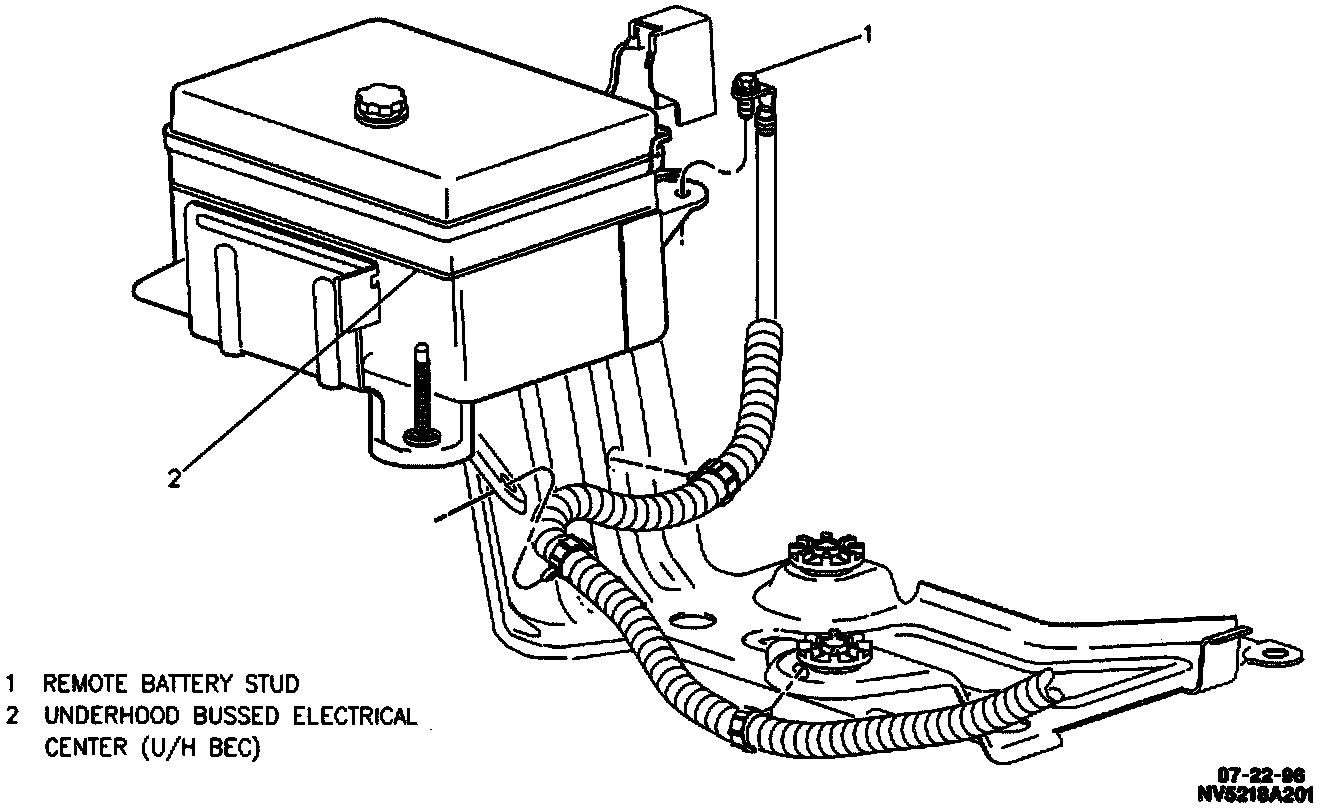

Underhood Bussed Electrical Center:




REMOVE OR DISCONNECT
1. Negative battery cable from battery.
2. Positive cable from battery.
3. Air inlet.
4. Cover from B.E.C. and battery cable.
5. Splice pack from inner fender.
6. Pull B.E.C. out of bracket and rotate clockwise 180 degrees.
7. Unsnap bottom cover.
8. Connectors from B.E.C.
9. B.E.C.

INSTALL OR CONNECT
1. B.E.C.
2. Connectors to B.E.C.
3. Snap bottom cover.
4. Rotate counterclockwise 180 degrees. Push B.E.C. into bracket.
5. Splice pack to inner fender.
6. Battery cable and cover to B.E.C.
7. Air inlet.
8. Positive cable to battery.
9. Negative battery cable to battery.
Tighten
^ Bolts to 16 N.m (12 lb ft).
