Inputs
Description:

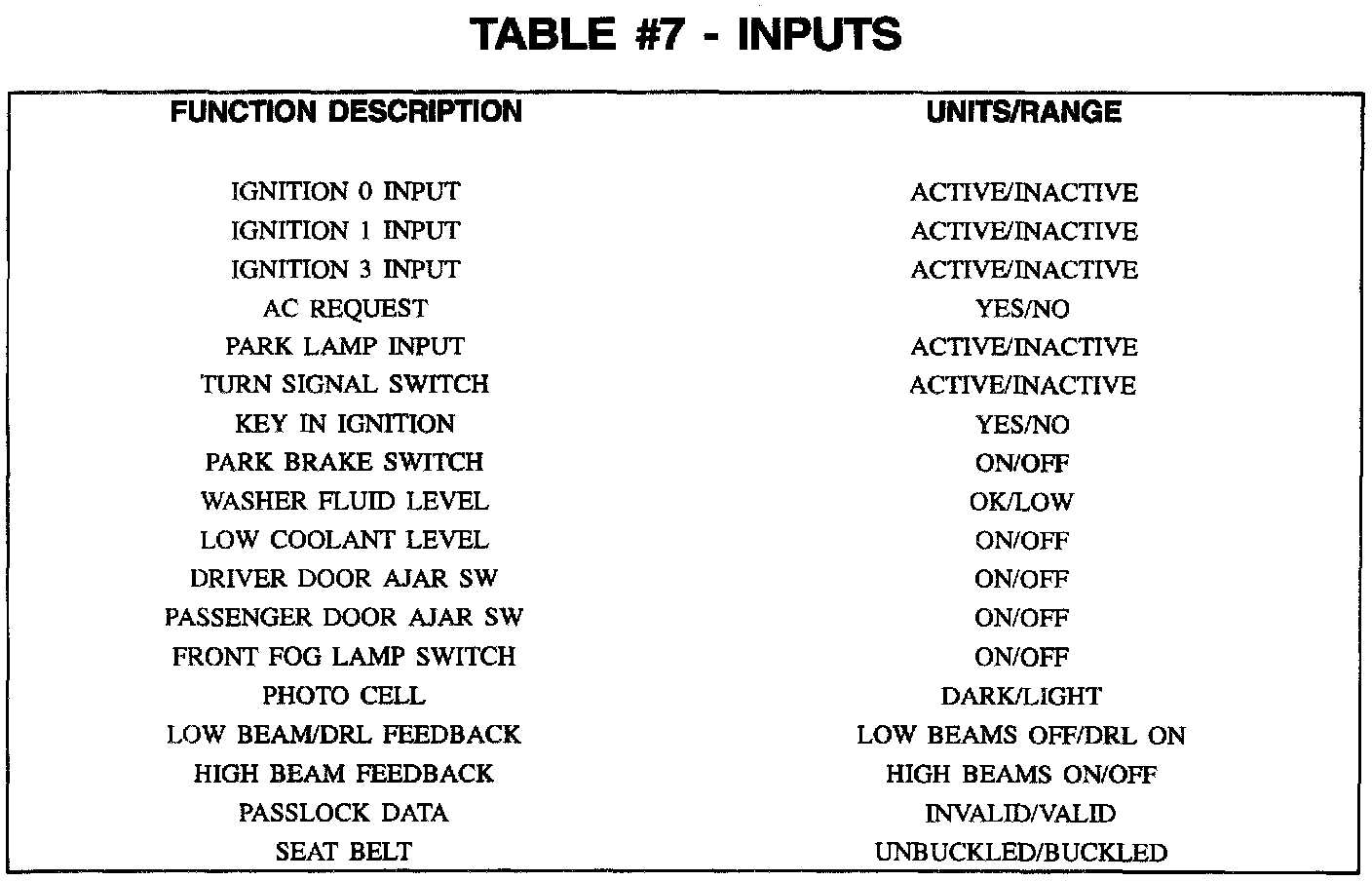

In this mode of operation, the scan tool can command the Body Function Controller (BFC) to read its various inputs. This mode can be used to determine whether the Body Function Controller (BFC) is receiving data correctly or if a component is operating properly. The inputs that can be read are listed on TABLE #7.
