Electronic Brake Control Module: Service and Repair

REMOVE OR DISCONNECT
1. Left front tire and wheel assembly.
2. Inner splash shield.

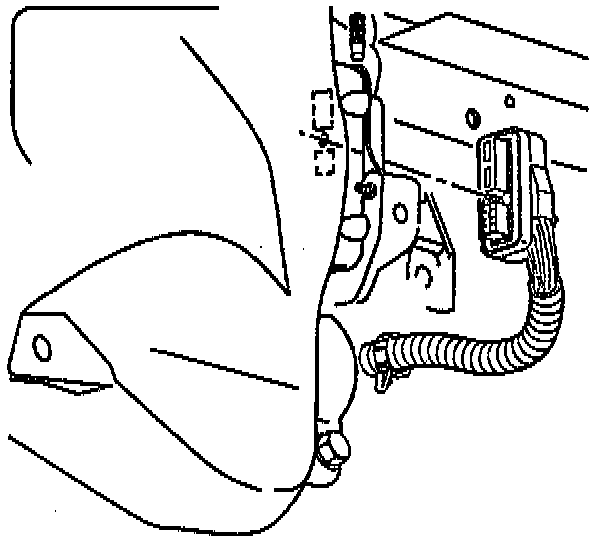

3. Electronic Brake Control Module (EBCM) electrical connector.

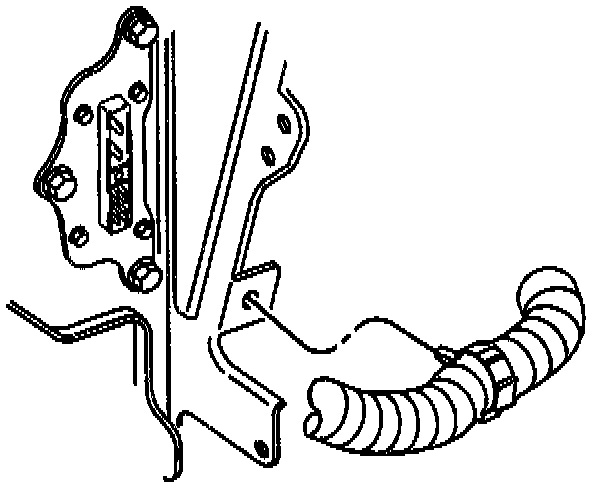

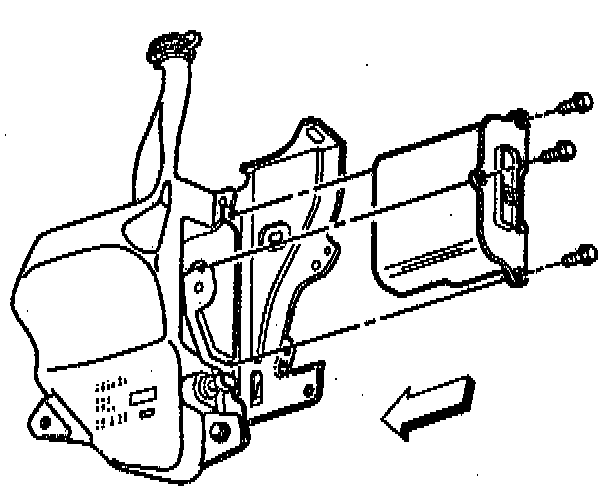

4. EBCM mounting screws from bracket.





5. EBCM.

INSTALL OR CONNECT
1. EBCM to vehicle.
2. Hex head screws, attaching EBCM. Tighten Hex head screws to 11 Nm (97 inch lbs.).
3. EBCM electrical connector.
4. Inner splash shield.
5. Left front tire and wheel assembly.
6. Perform Diagnostic System Check.
