Oil Pressure Sensor: Service and Repair

Oil Pressure / Fuel Pump Switch:






Removal Procedure

1. Turn the ignition OFF.

2. Remove the electrical connector.

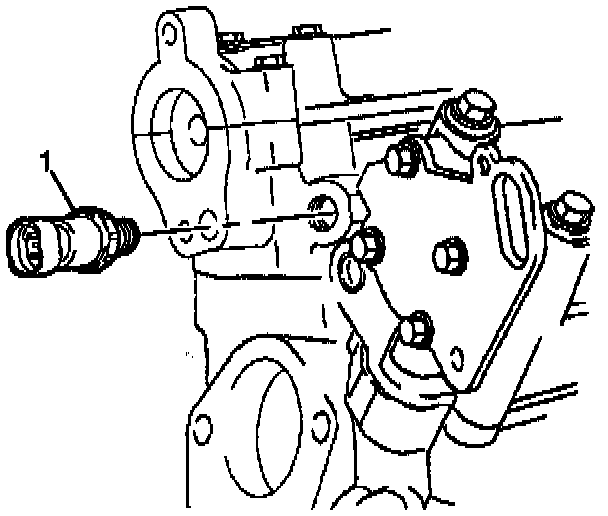

3. Remove the engine oil pressure sensor (1).

Installation Procedure

1. Coat the threads with the sealer P/N 9985253 or the equivalent.

2. Install the engine oil pressure indicator sensor (1).

^ Tighten the engine oil pressure indicator switch to 12.5 N.m (9 lb ft).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the electrical connector.
