Cruise Control Cable

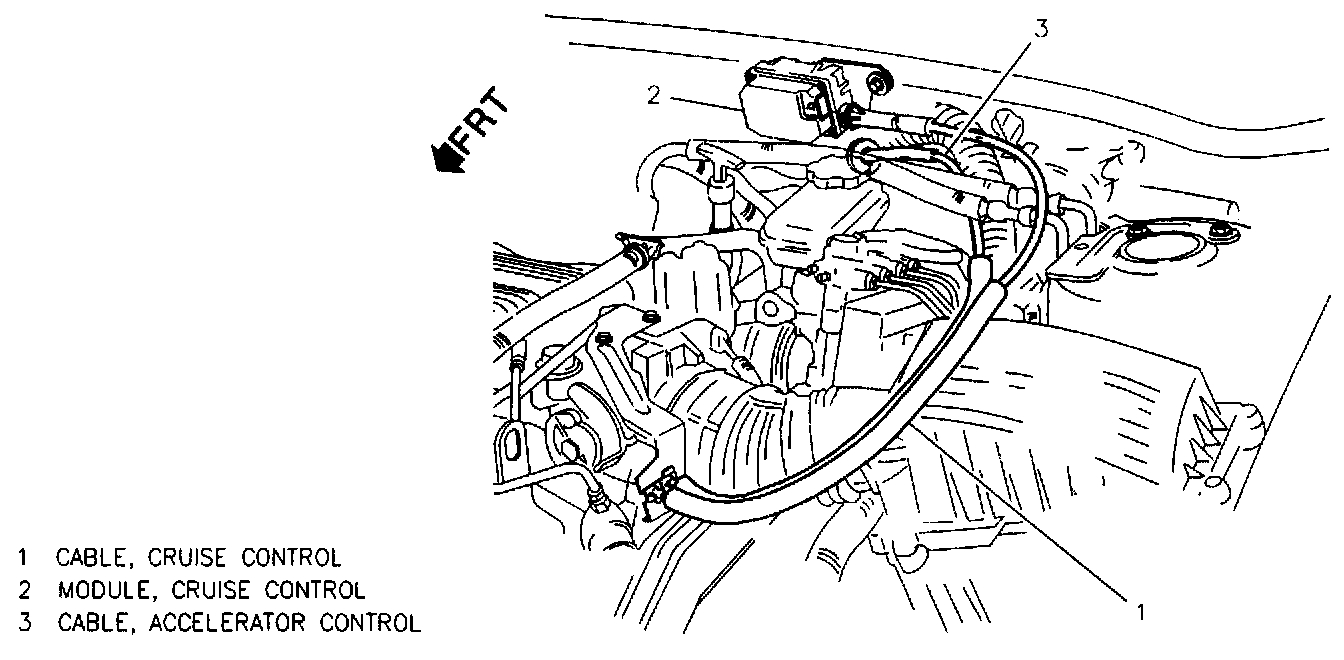

Cruise Control Routing - 2.4 L:

Cruise Control Routing - 3100 V-6:

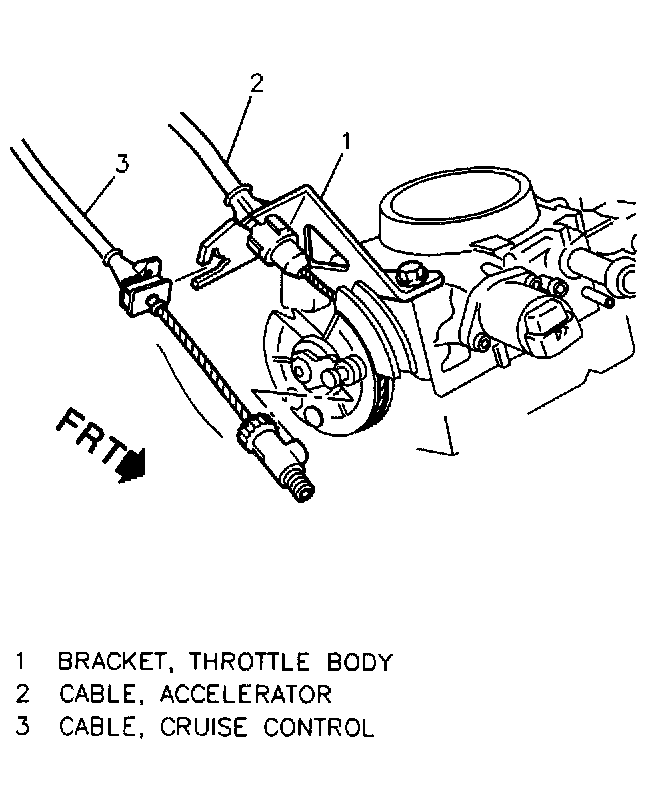

Cruise Control Cable To Throttle Bracket - 2.4 L:

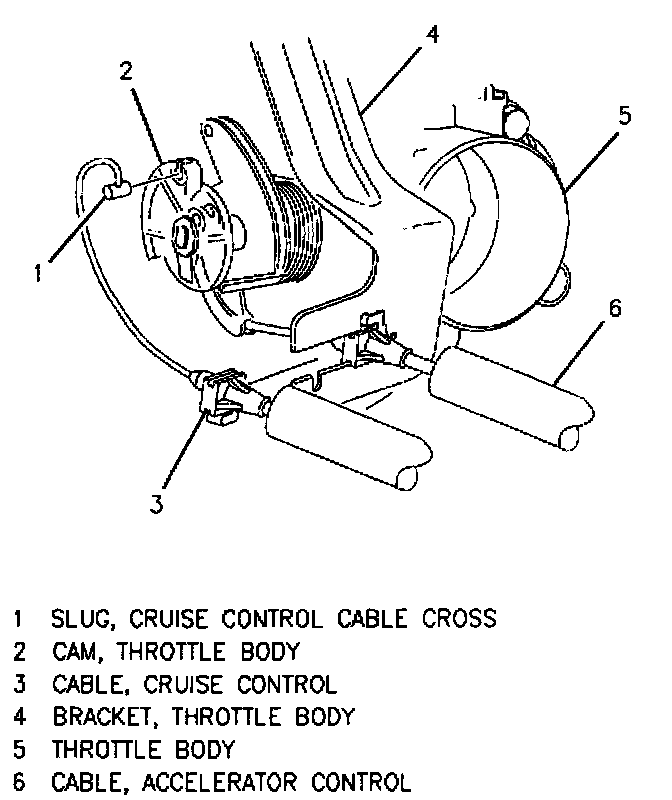

Cruise Control Cable To Throttle Bracket - 3100 V-6:

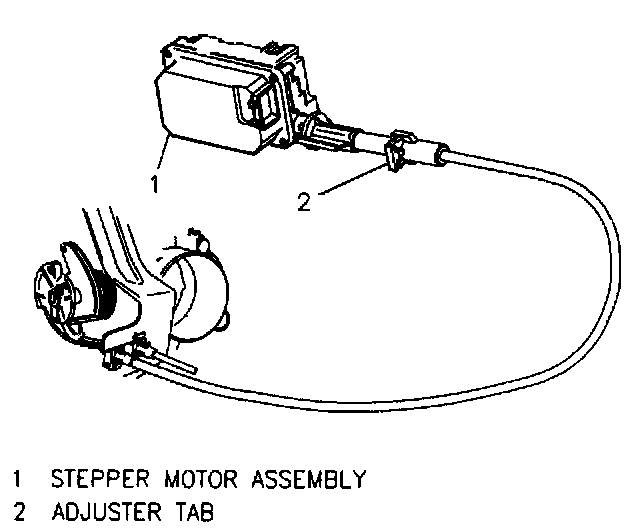

Cruise Control Cable Locking And Adjustment:

Cruise Control Cable To Module:

REMOVE OR DISCONNECT
1. Cruise control cable tab from TBI cam. Rotate throttle body cam to 1/4 open throttle to release tab.
2. Push locating fitting inward to release cable and pull from bracket.
3. Cable assembly from module by 1/4 turn counter clockwise.
4. Cable from ribbon.

INSTALL OR CONNECT
1. Cable to ribbon.
2. Cable assembly to module by 1/4 turn clockwise.
3. Cruise control cable tab to TBI cam.
4. Align cruise control cable fitting to TBI bracket and snap into place.
