HVAC Control Head

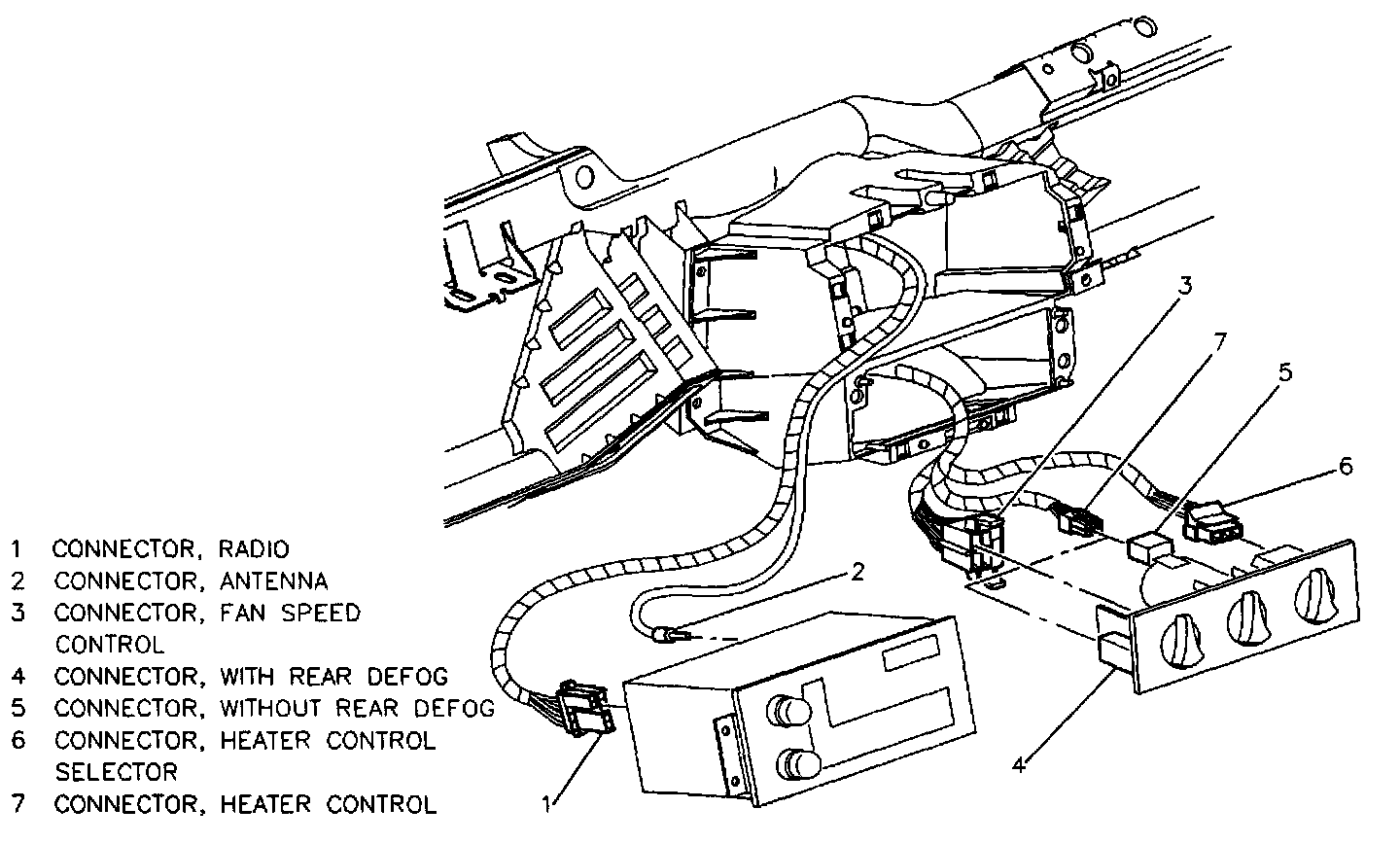

HVAC And Radio:

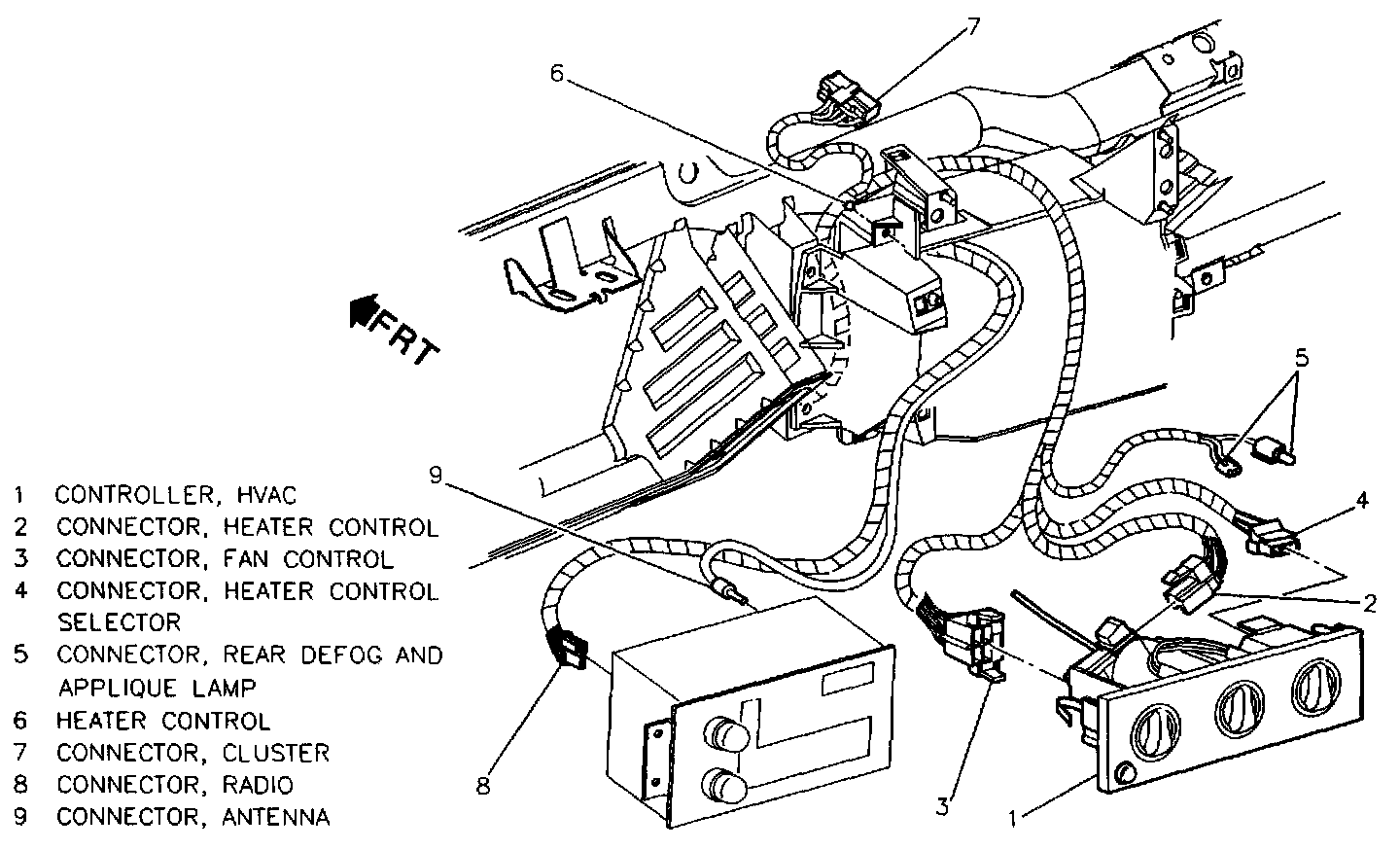

HVAC And Radio:
REMOVE OR DISCONNECT 1.
I/P cluster trim plate. Refer to
I/P Cluster Trim Plate.
2.
Electrical connectors.
3.
Control cable.
INSTALL OR CONNECT 1.
Control cable.
2.
Electrical connectors.
3.
I/P cluster trim plate. Refer to
I/P Cluster Trim Plate.
