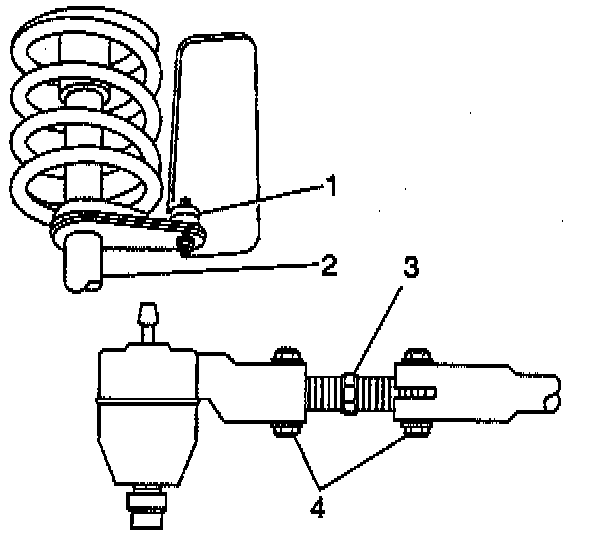

Front Toe Adjustment
1.
Be sure the steering wheel is set in a straight ahead position within
± 5°.
2.
Loosen the clamp bolt.
3.
Adjust the toe to specification by turning the adjuster.
Tighten Tighten the clamp bolt to
42 Nm (31 ft. lbs.).
Refer to FASTENER TIGHTENING SPECIFICATIONS.
